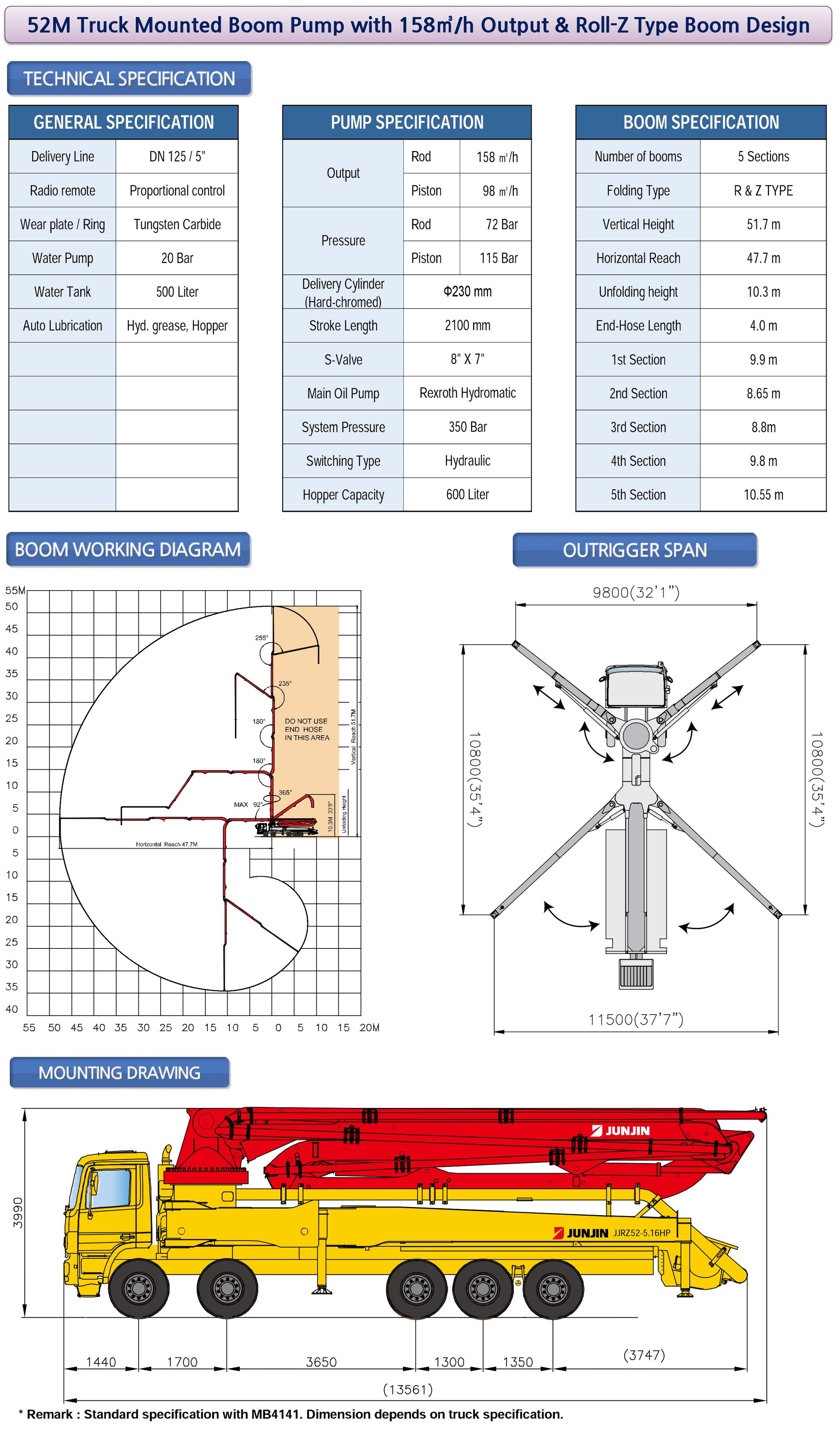

建筑机械 混凝土泵车 70 ~ 50M JJRZ52-5.16HP Fast setup and excellent stability 类型 RZ TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S-Valve 8 X 7 Main Oil Pump Rexroth Hydromatic System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type R & Z Type Vertical Height 51.7 m Horizontal Reach 47.7 m Unfolding height 10.3 m End-Hose Length 4.0 m 1st Section 9.9 m 2nd Section 8.65 m 3rd Section 8.8m 4th Section 9.8 m 5th Section 10.55 m DIMENSIONS & DIAGRAM
