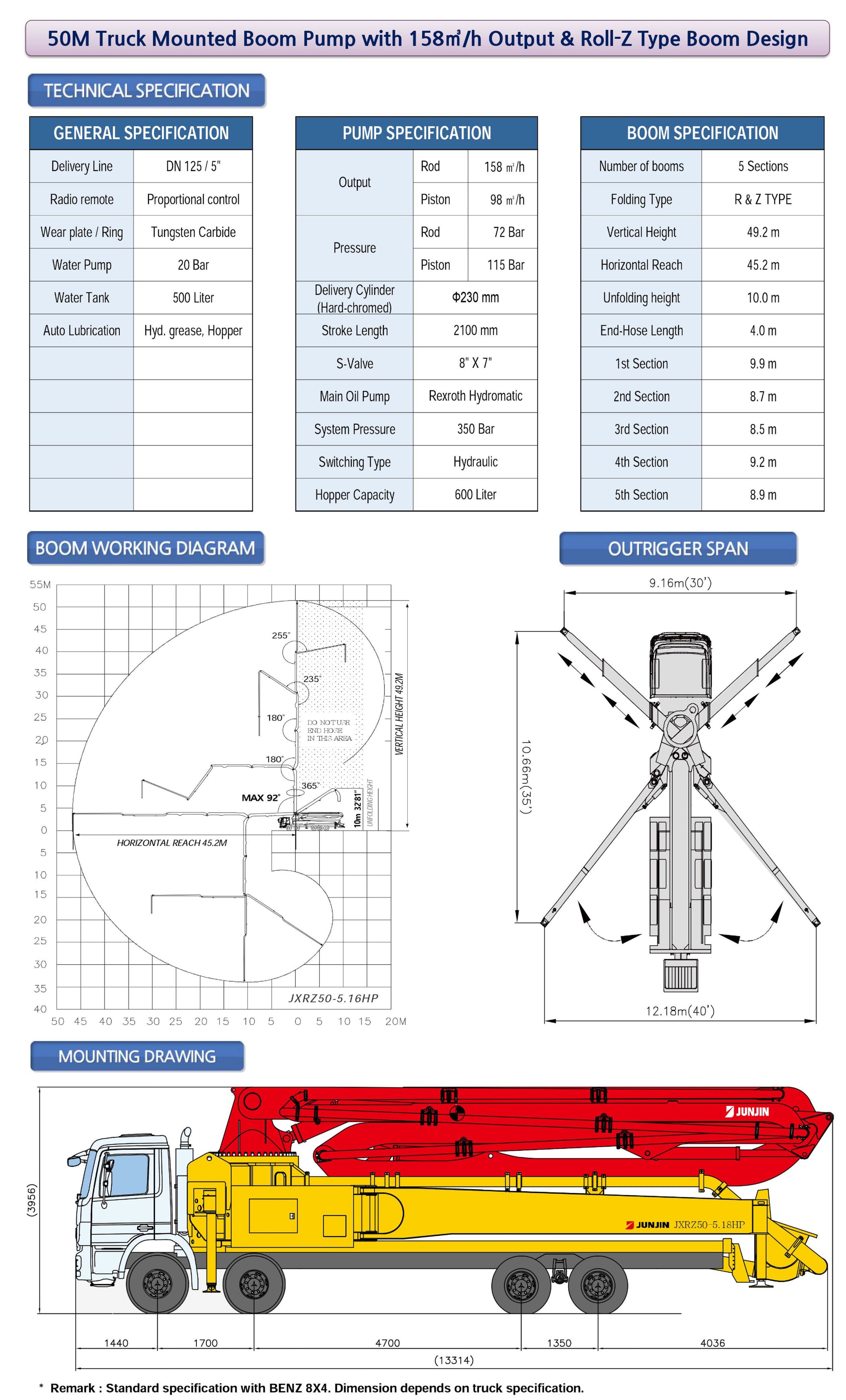

建筑机械 混凝土泵车 70 ~ 50M JXRZ50-5.16HP Set up on commercial or industrial. Sites and reach it all! 类型 RZ TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump Water Pump Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S - Valve 8 X 7 Main Oil Pump Rexroth Hydromatic System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type R & Z Vertical Height 49.2m Horizontal Reach 45.2m Unfolding height 10.0m End-Hose Length 4.0m 1st Section 9.9 m 2nd Section 8.7m 3rd Section 8.5m 4th Section 9.2m 5th Section 8.9m DIMENSIONS & DIAGRAM
