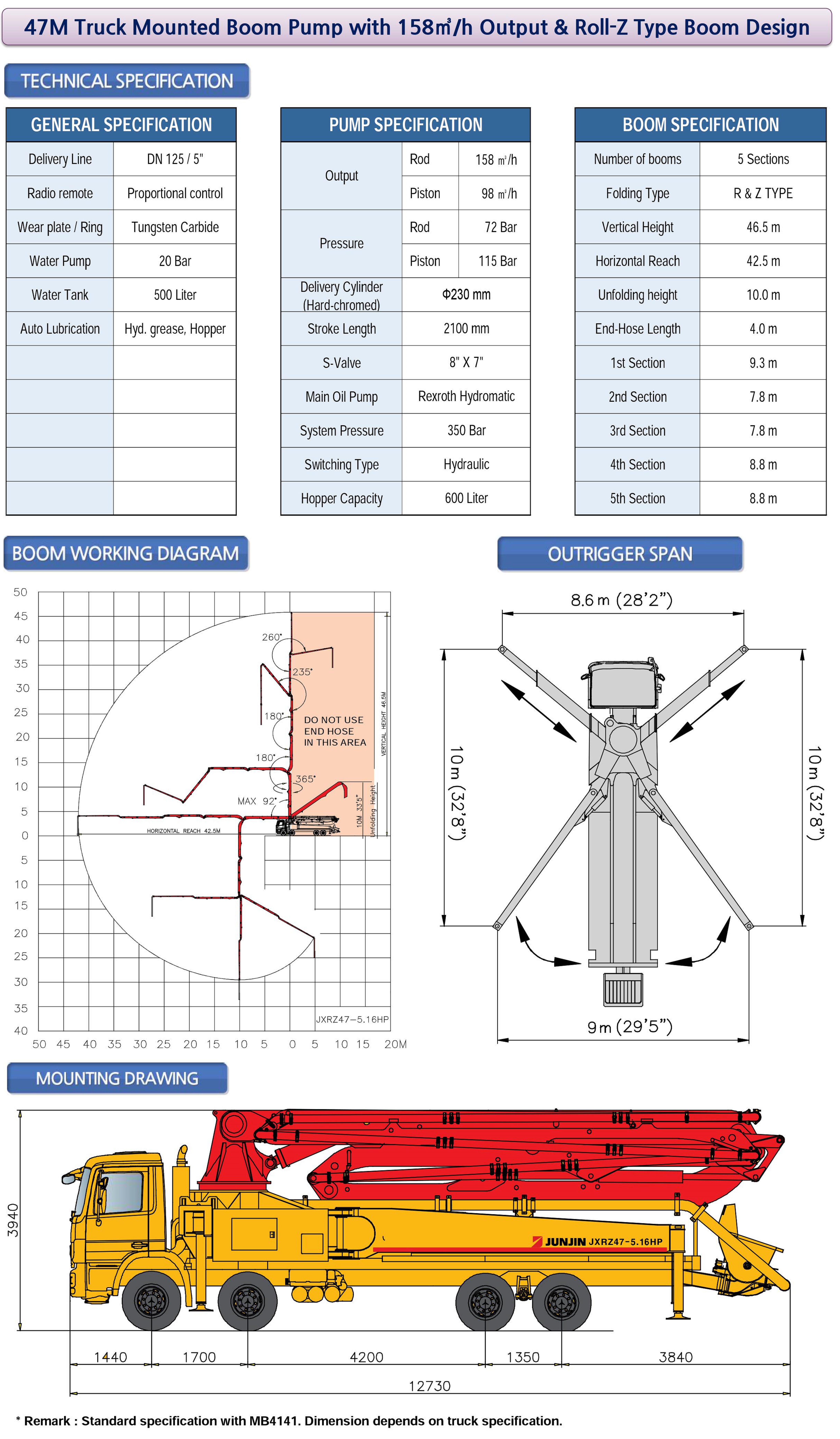

建筑机械 混凝土泵车 49 ~ 40M JXRZ47-5.16HP A great sales succes in the North America and Europe market 类型 RZ TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S - Valve 8 X 7 Main Oil Pump Rexroth Hydromatic System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type R & Z TYPE Vertical Height 46.5 m Horizontal Reach 42.5 m Unfolding height 10 m End-Hose Length 4.0 m 1st Section 9.3 m 2nd Section 7.8 m 3rd Section 7.8 m 4th Section 8.8 m 5th Section 8.8 m DIMENSIONS & DIAGRAM
