建筑机械 混凝土泵车 49 ~ 40M

JXRZ46-5.16HP

Advantageous weight and overall length!! The versatile and flexible pump is mounted on the
4 axles chassis.

类型
RZ TYPE
下载参数
  • JXRZ46-5.16HP
  • JXRZ46-5.16HP
  • JXRZ46-5.16HP
  • JXRZ46-5.16HP
  • JXRZ46-5.16HP
  • JXRZ46-5.16HP
  • JXRZ46-5.16HP
  • JXRZ46-5.16HP
  • JXRZ46-5.16HP
  • JXRZ46-5.16HP
SPECIFICATION
Delivery Line DN 125 / 5 Radio remote Proportional control
Wear plate / Ring Tungsten Carbide Water Pump 20 Bar
Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper
Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar
Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm
S - Valve 8 X 7 Main Oil Pump Rexroth Hydromatic
System Pressure 350 Bar Switching Type Hydraulic
Hopper Capacity 600 Liter Number of booms 5 Sections
Folding Type R & Z TYPE Vertical Height 46 m
Horizontal Reach 42 m Unfolding height 12.65 m
End-Hose Length 4.0 m 1st Section 9.25 m
2nd Section 7.05 m 3rd Section 6.90 m
4th Section 9.20 m 5th Section 9.60 m

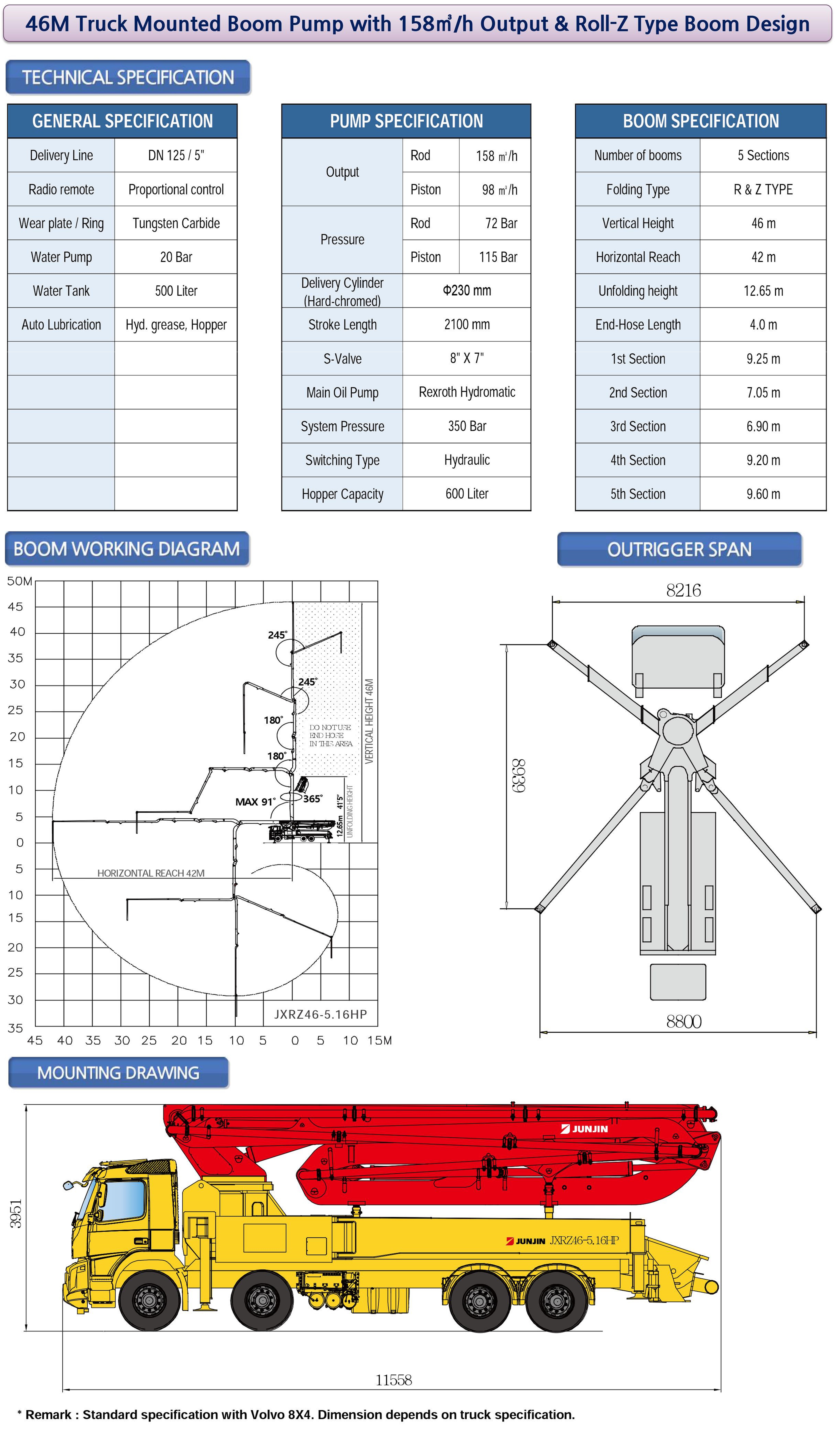

DIMENSIONS & DIAGRAM
