建筑机械混凝土泵车 49 ~ 40M

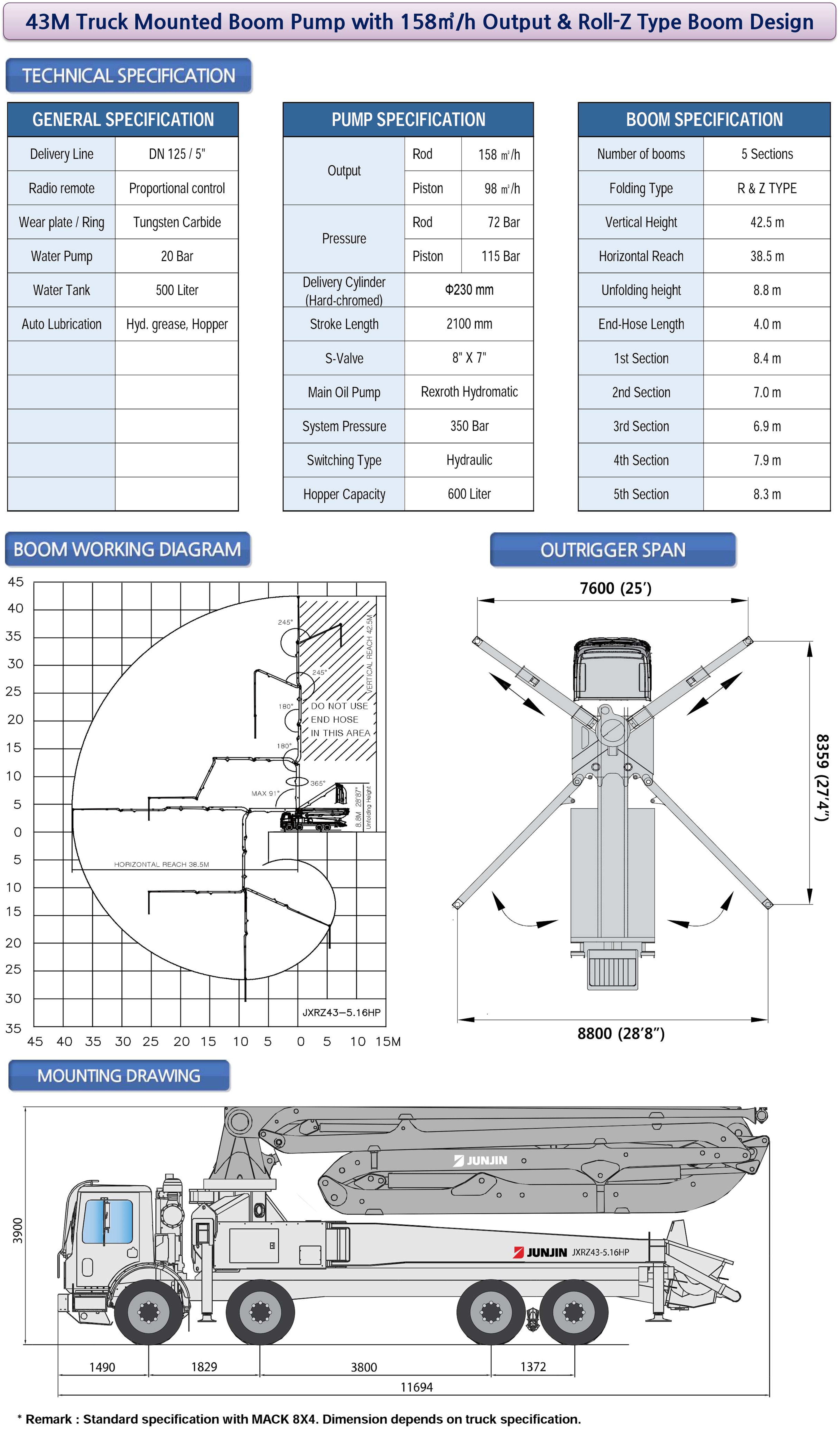

The current industry buzz!!! Powerful and weight-optimized

Delivery Line	DN 125 / 5"	Radio remote	Proportional control
Wear plate / Ring	Tungsten Carbide	Water Pump	20 Bar
Water Tank	500 Liter	Auto Lubrication	Hyd. grease, Hopper
Output	Rod 158 ㎥/h / Piston 98 ㎥/h	Pressure	Rod 72 Bar / Piston 115 Bar
Delivery Cylinder (Hard-chromed)	Φ230 mm	Stroke Length	2100 mm
S-Valve	8 X 7	Main Oil Pump	Rexroth Hydromatic
System Pressure	350 Bar	Switching Type	Hydraulic
Hopper Capacity	600 Liter	Number of booms	5 Sections
Folding Type	R & Z	Vertical Height	42.5 m
Horizontal Reach	38.5 m	Unfolding height	8.8 m
End-Hose Length	4.0 m	1st Section	8.4 m
2nd Section	7.0 m	3rd Section	6.9 m
4th Section	7.9 m	5th Section	8.3 m
