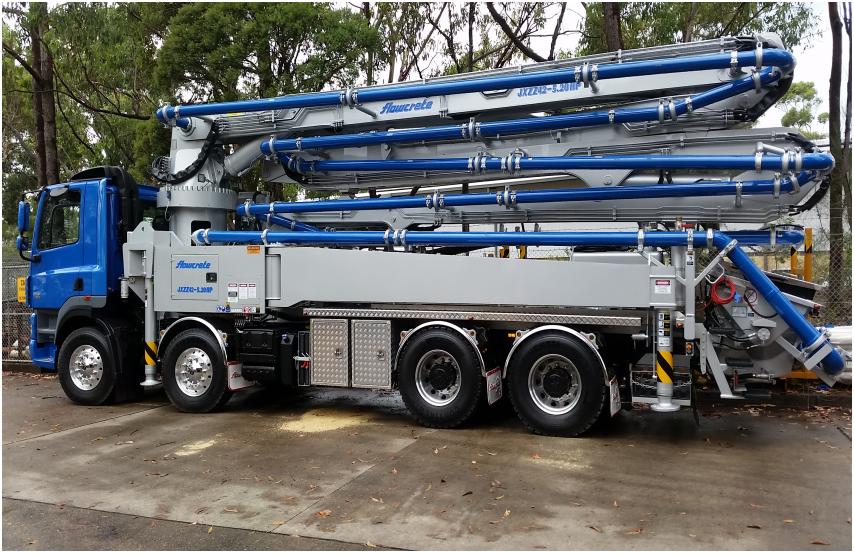

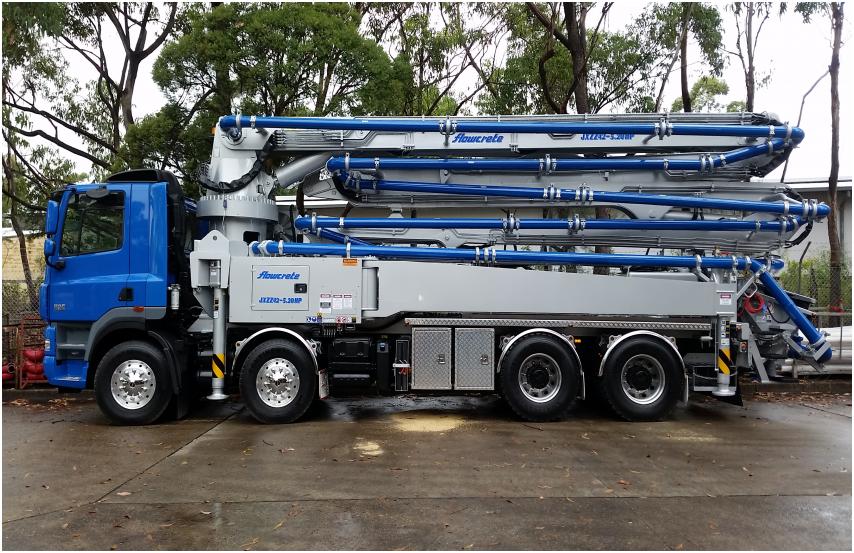

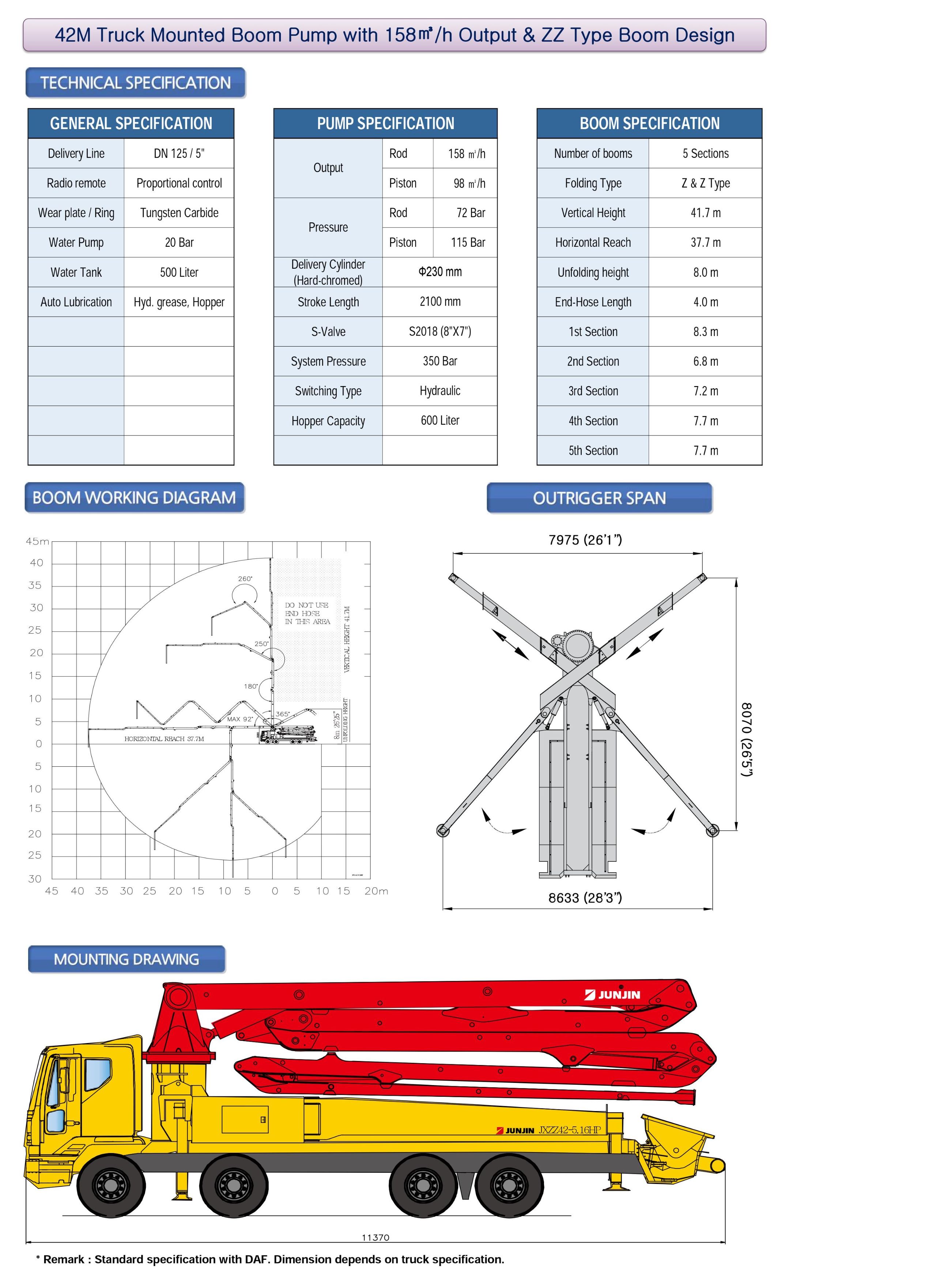

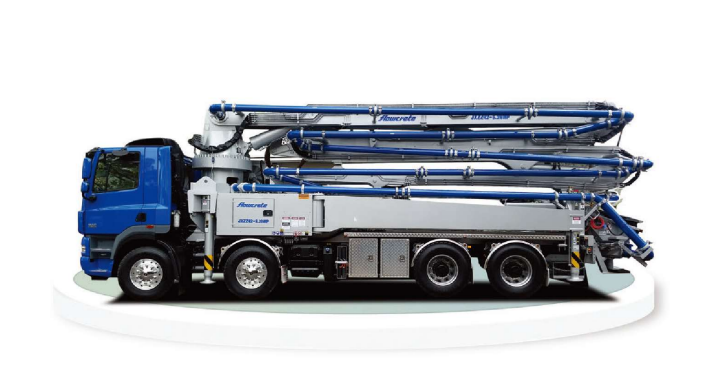

建筑机械 混凝土泵车 49 ~ 40M JXZZ42-5.16HP JXZZ42-5.16HP 类型 ZZ TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S-Valve S2018 (8 X7) System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type Z & Z Type Vertical Height 41.7 m Horizontal Reach 37.7 m Unfolding height 8.0 m End-Hose Length 4.0 m 1st Section 8.3 m 2nd Section 6.8 m 3rd Section 7.2 m 4th Section 7.7 m 5th Section 7.7 m DIMENSIONS & DIAGRAM
![0001[2].jpg](/data/plupload/o_1fp8v25c2ua46rkbhld39bnfa.jpg)
