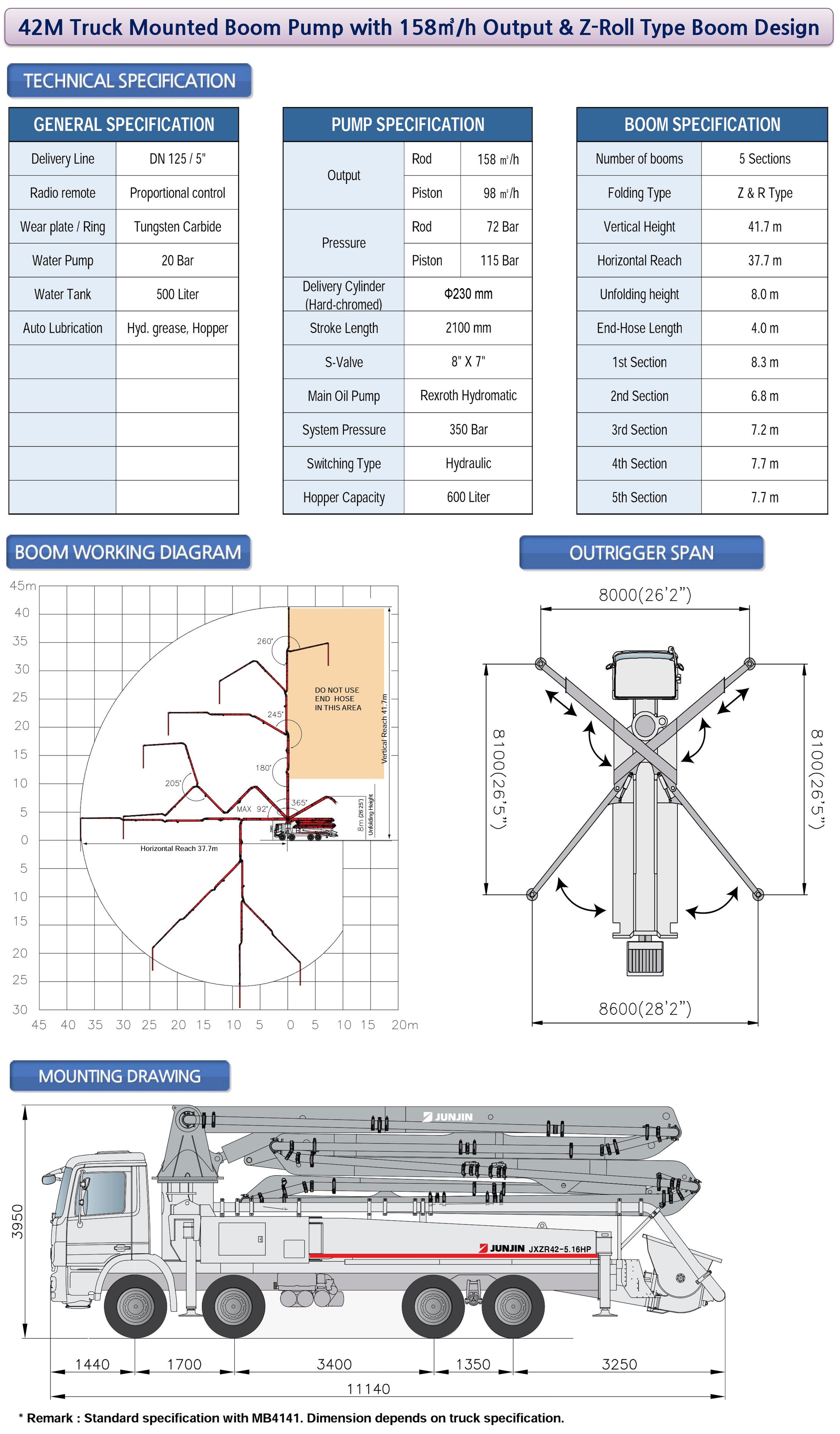

建筑机械 混凝土泵车 49 ~ 40M JXZR42-5.16HP The combination of flexibility and the compact design. Very low unfolding height of 8.0m 类型 ZR TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S-Valve 8 X 7 Main Oil Pump Rexroth Hydromatic System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type Z & R Vertical Height 41.7 m Horizontal Reach 37.7 m Unfolding height 8 m End-Hose Length 4.0 m 1st Section 8.3 m 2nd Section 6.8 m 3rd Sectio 7.2 m 4th Section 7.7 m 5th Section 7.7 m DIMENSIONS & DIAGRAM
