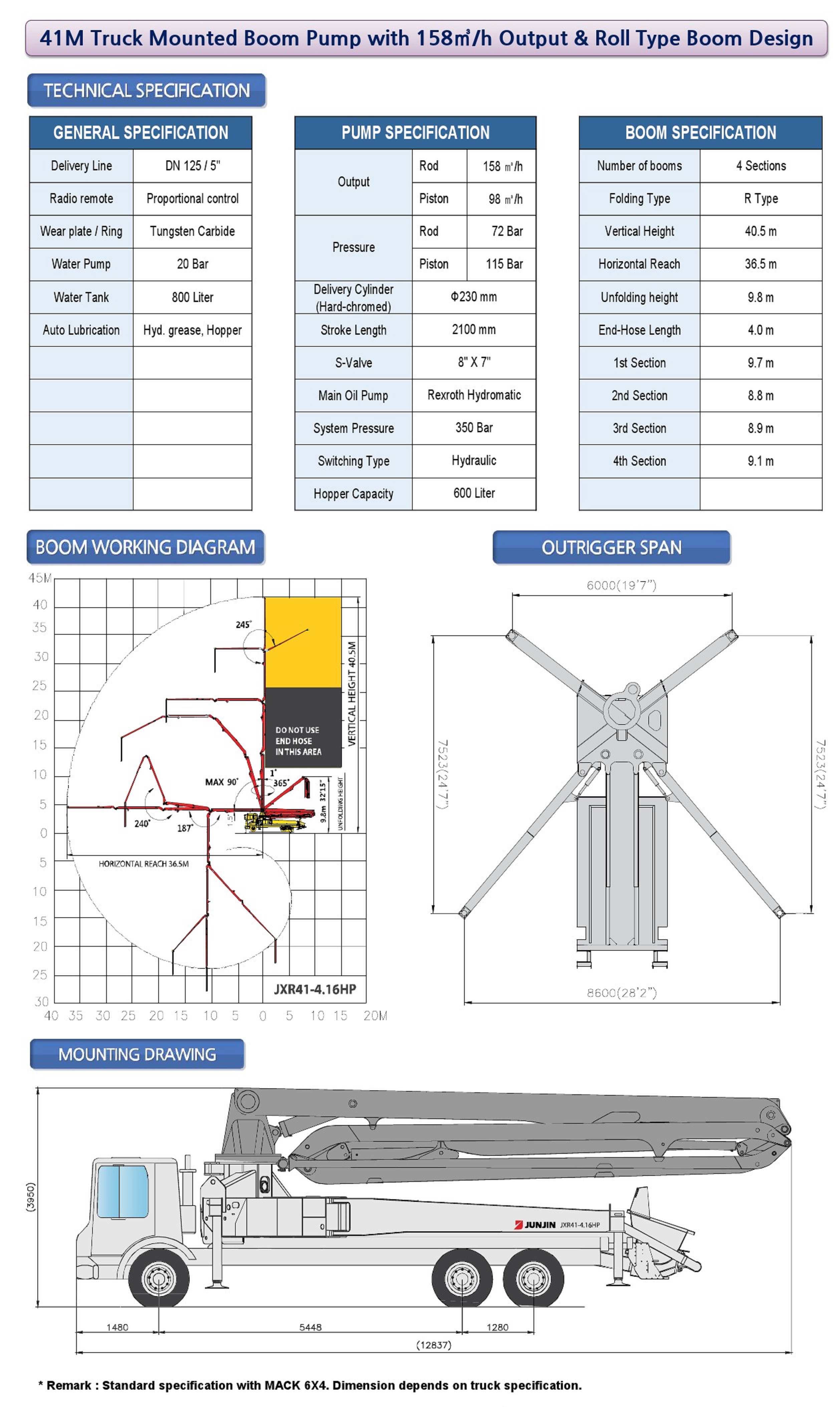

建筑机械 混凝土泵车 49 ~ 40M JXR41-4.16HP Simplicity and convenience has just got better. Getting pumping, getting satisfying. 类型 R TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 800 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S - Valve 8 X 7 Main Oil Pump Rexroth Hydromatic System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 4 Sections Folding Type R TYPE Vertical Height 40.5 m Horizontal Reach 36.5 m Unfolding height 9.8 m End-Hose Length 4.0 m 1st Section 9.7 m 2nd Section 8.8 m 3rd Section 8.9 m 4th Section 9.1 m DIMENSIONS & DIAGRAM
