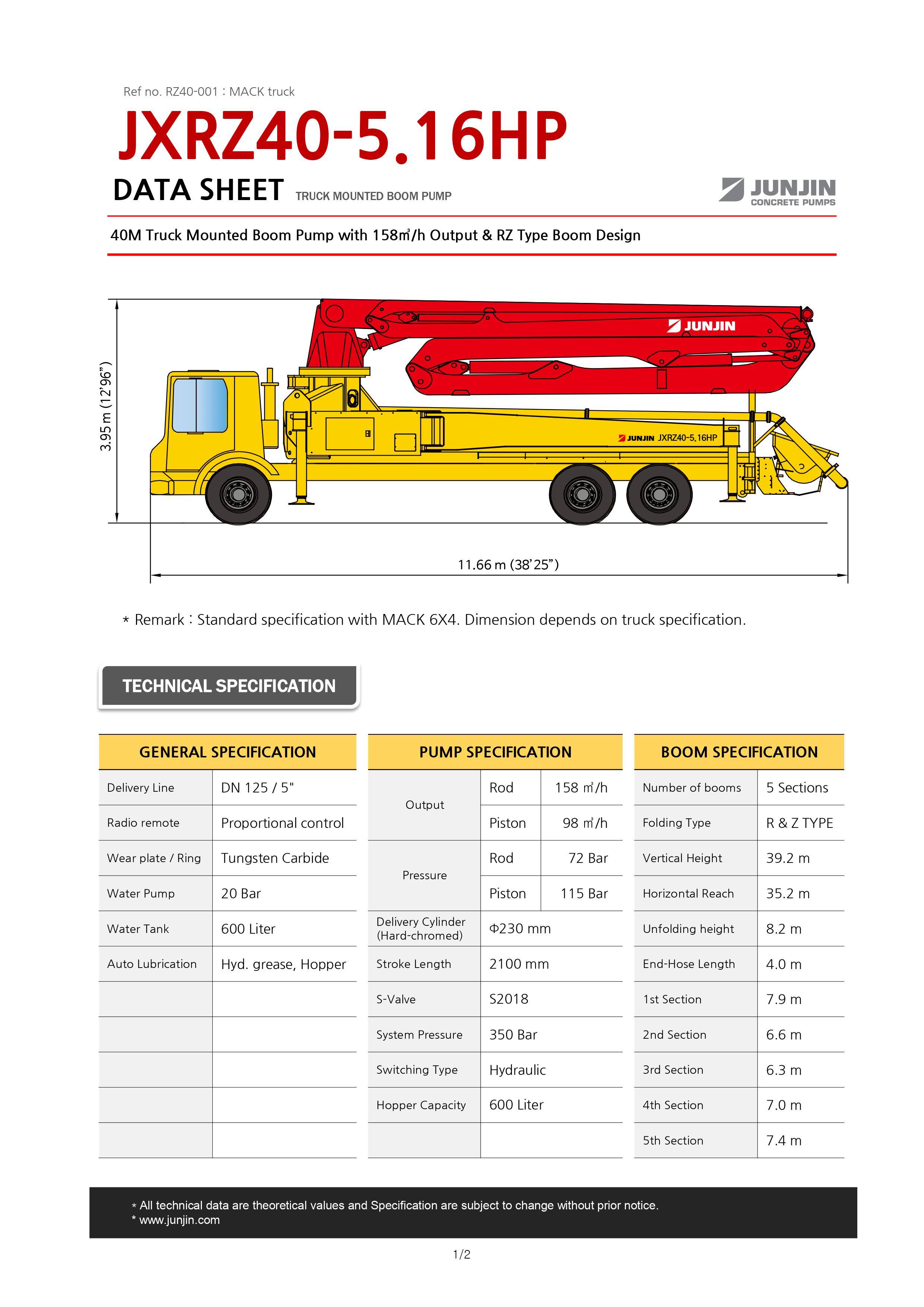

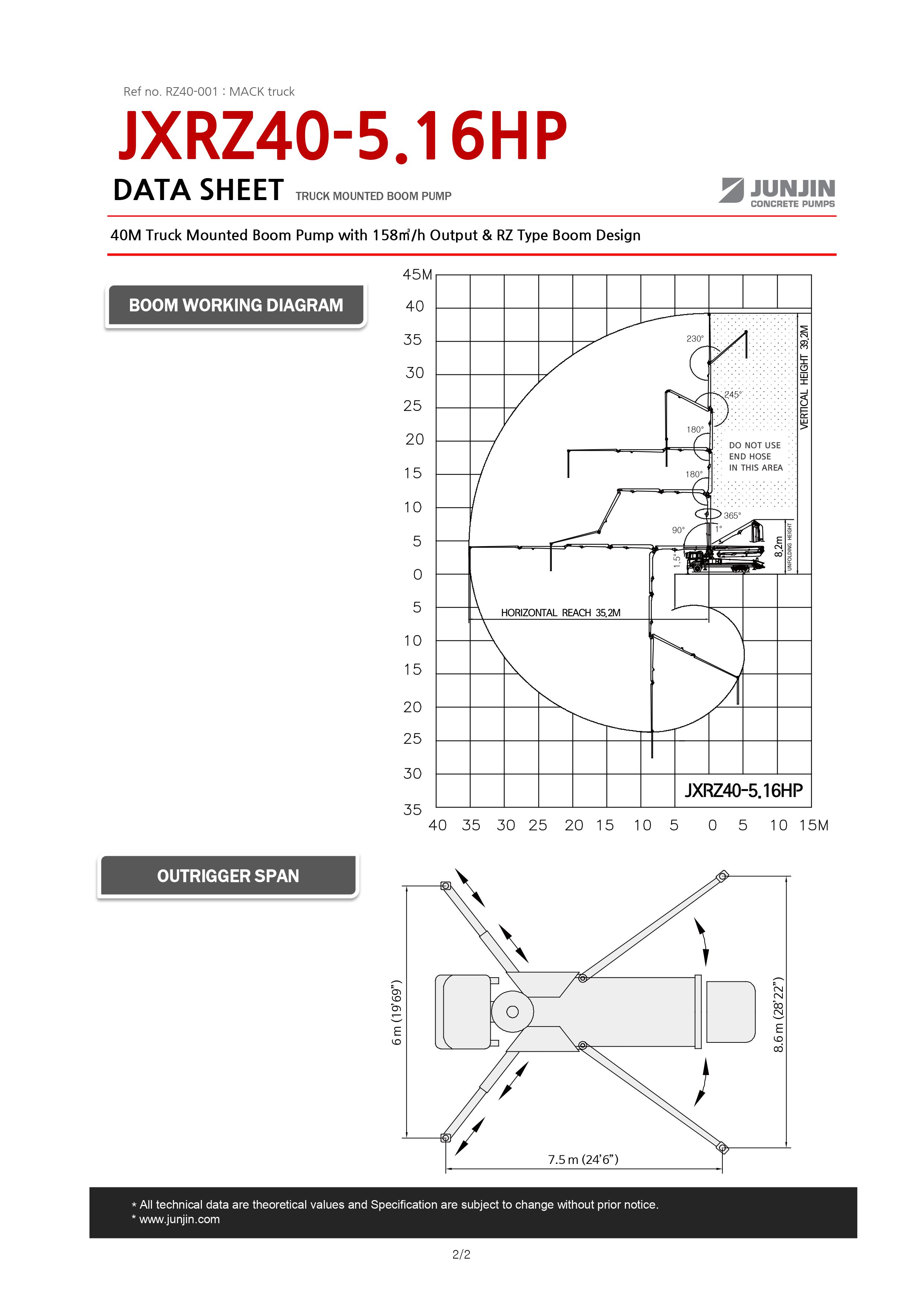

建筑机械 混凝土泵车 49 ~ 40M JXRZ40-5.16HP JXRZ40-5.16HP 类型 RZ TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 600 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S-Valve S2018 System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type R & Z TYPE Vertical Height 39.2 m Horizontal Reach 35.2 m Unfolding height 8.2 m End-Hose Length 4.0 m 1st Section 7.9 m 2nd Section 6.6 m 3rd Section 6.3 m 4th Section 7.0 m 5th Section 7.4 m DIMENSIONS & DIAGRAM
