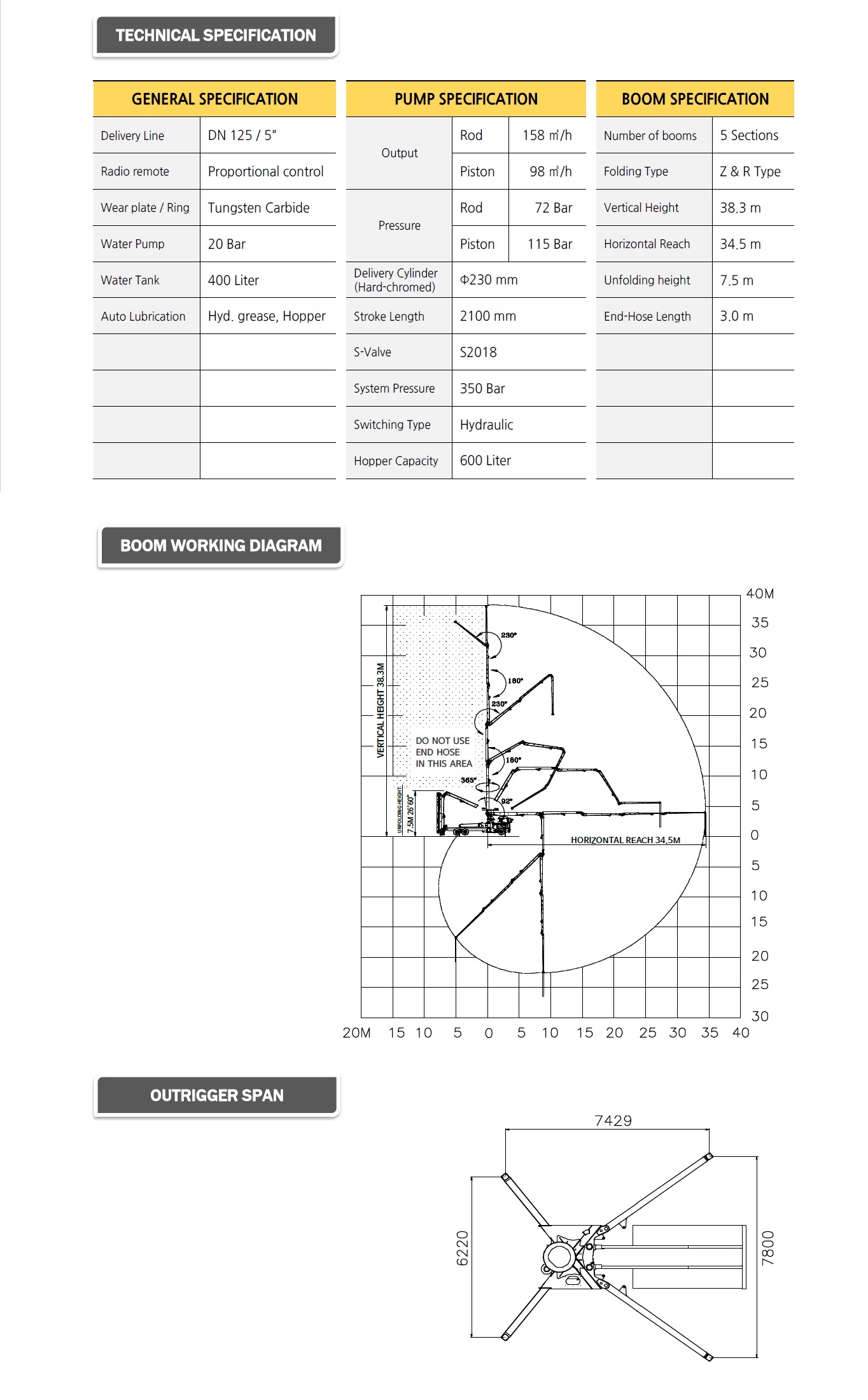

建筑机械 混凝土泵车 39 ~ 30M JXZR39-5.16HP (For JP) Customized for JAPAN Market 类型 ZR TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 400 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S-Valve S2018 System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type Z & R Type Vertical Height 38.3 m Horizontal Reach 34.5 m Unfolding height 7.5 m End-Hose Length 3.0 m DIMENSIONS & DIAGRAM
