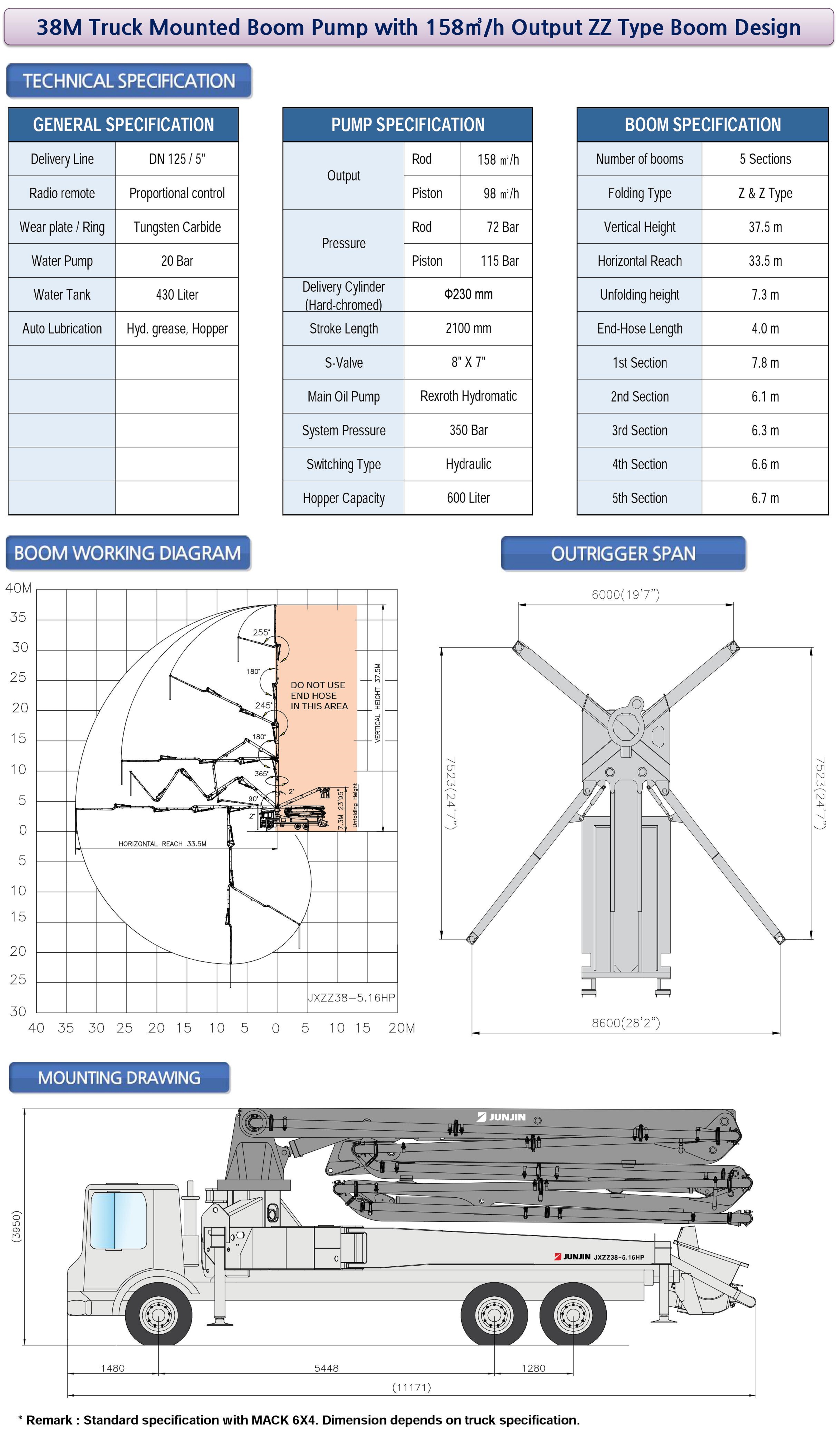

建筑机械 混凝土泵车 39 ~ 30M JXZZ38-5.16HP Extreme versatility - now here by popular demand! Amazing opening & reach with this new unit. 类型 ZZ TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 430 Liter Auto Lubrication Hyd. grease, Hopper Outpu Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S-Valve 8 X 7 Main Oil Pump Rexroth Hydromatic System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type Z & Z TYPE Vertical Height 37.5 m Horizontal Reach 33.5 m Unfolding height 7.3 m End-Hose Length 4.0 m 1st Section 7.8 m 2nd Section 6.1 m 3rd Section 6.3 m 4th Section 6.6 m 5th Section 6.7 m DIMENSIONS & DIAGRAM
