建筑机械 混凝土泵车 39 ~ 30M

JXZ38-4.16HP

When you are looking for something very articulate!!
It is best seller first, last and all the time with JXR38-4.16HP.

类型
Z TYPE
下载参数
  • JXZ38-4.16HP
  • JXZ38-4.16HP
  • JXZ38-4.16HP
  • JXZ38-4.16HP
  • JXZ38-4.16HP
  • JXZ38-4.16HP
  • JXZ38-4.16HP
  • JXZ38-4.16HP

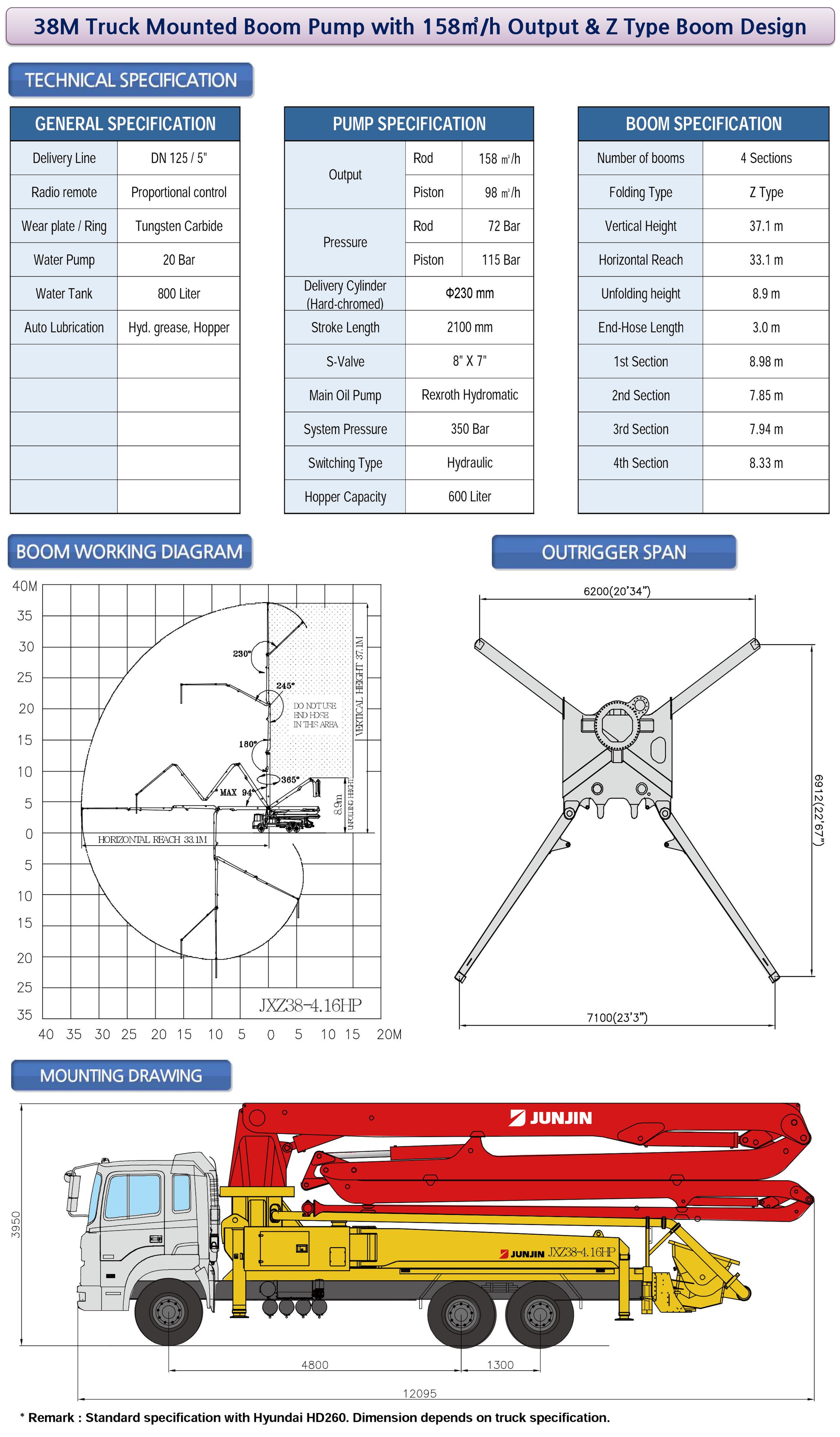

SPECIFICATION
Delivery Line DN 125 / 5 Radio remote Proportional control
Wear plate / Ring Tungsten Carbide Water Pump 20 Bar
Water Tank 800 Liter Auto Lubrication Hyd. grease, Hopper
Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar
Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm
S - Valve 8 X 7 Main Oil Pump Rexroth Hydromatic
System Pressure 350 Bar Switching Type Hydraulic
Hopper Capacity 600 Liter Number of booms 4 Sections
Folding Type Z TYPE Vertical Height 37.1 m
Horizontal Reach 33.1 m Unfolding height 8.9 m
End-Hose Length 3.0 m 1st Section 8.98 m
2nd Section 7.85 m 3rd Section 7.94 m
4th Section 8.33 m
DIMENSIONS & DIAGRAM
