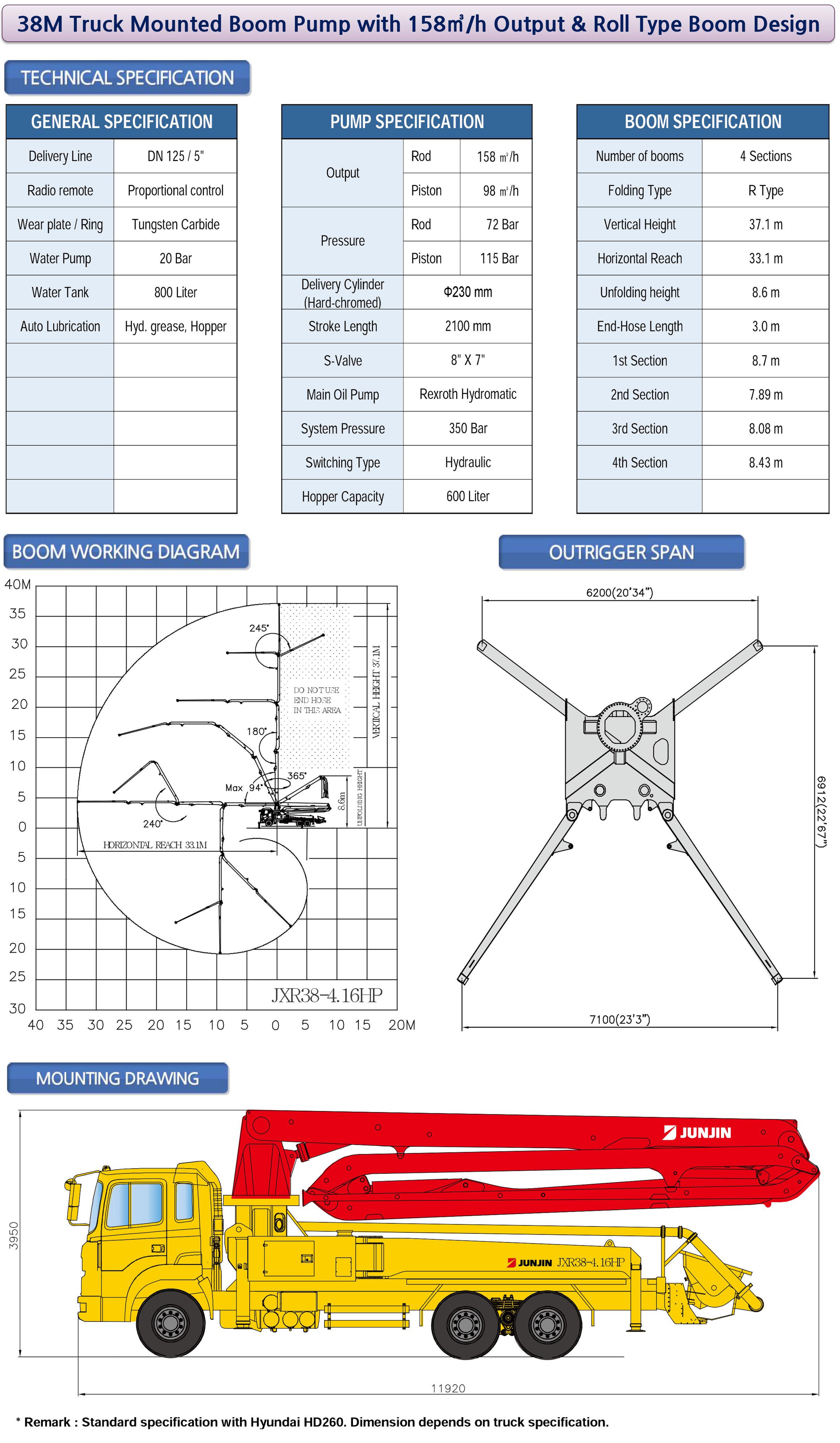

建筑机械 混凝土泵车 39 ~ 30M JXR38-4.16HP Tried, tested and true. Consistently a top seller. Lighter weight without sacrificing strength. 类型 R TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 800 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S - Valve 8 X 7 Main Oil Pump Rexroth Hydromatic System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 4 Sections Folding Type R TYPE Vertical Height 37.1 m Horizontal Reach 33.1 m Unfolding height 8.6 m End-Hose Length 3.0 m 1st Section 8.7 m 2nd Section 7.89 m 3rd Section 8.08 m 4th Section 8.43 m DIMENSIONS & DIAGRAM
