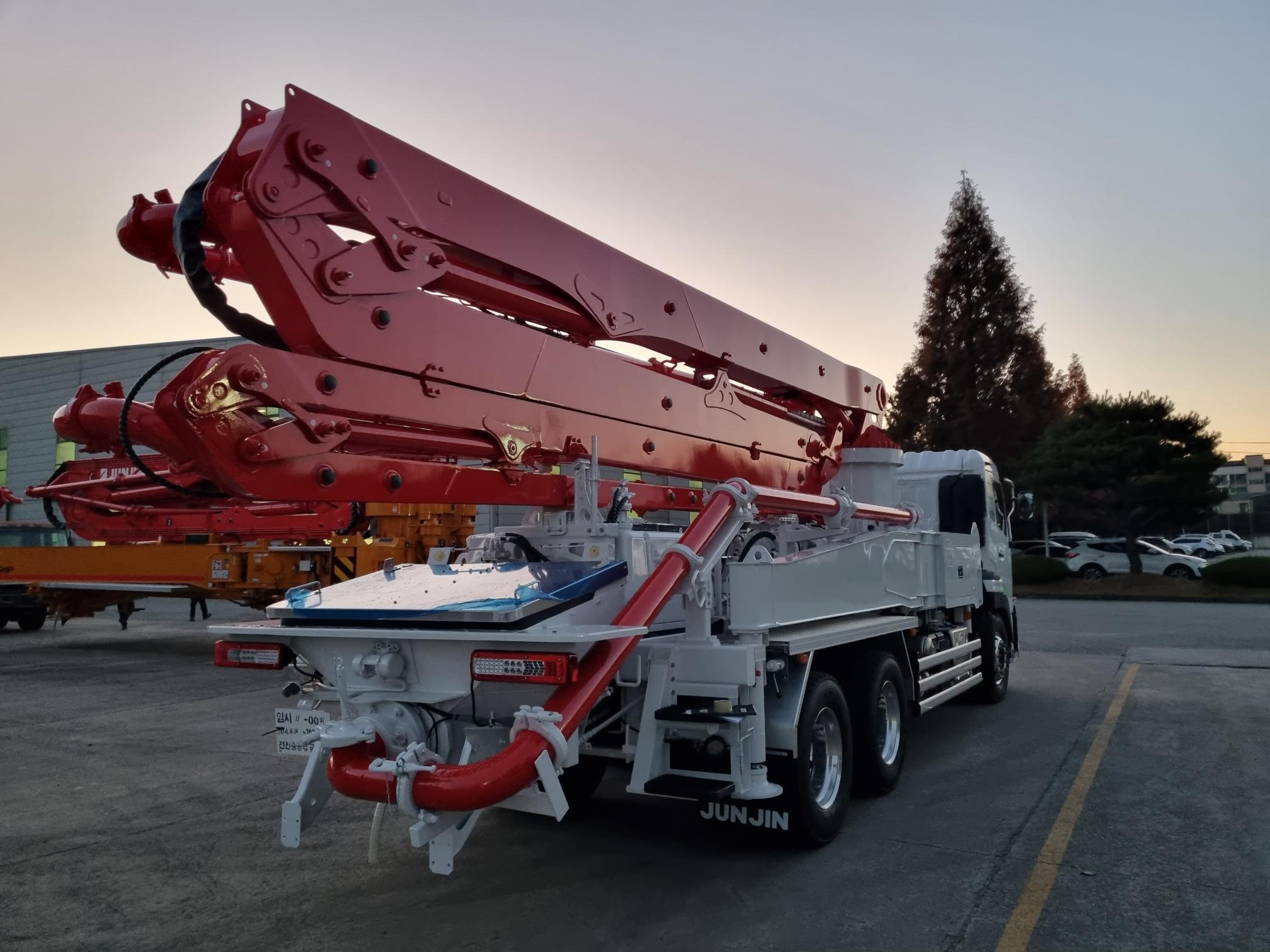

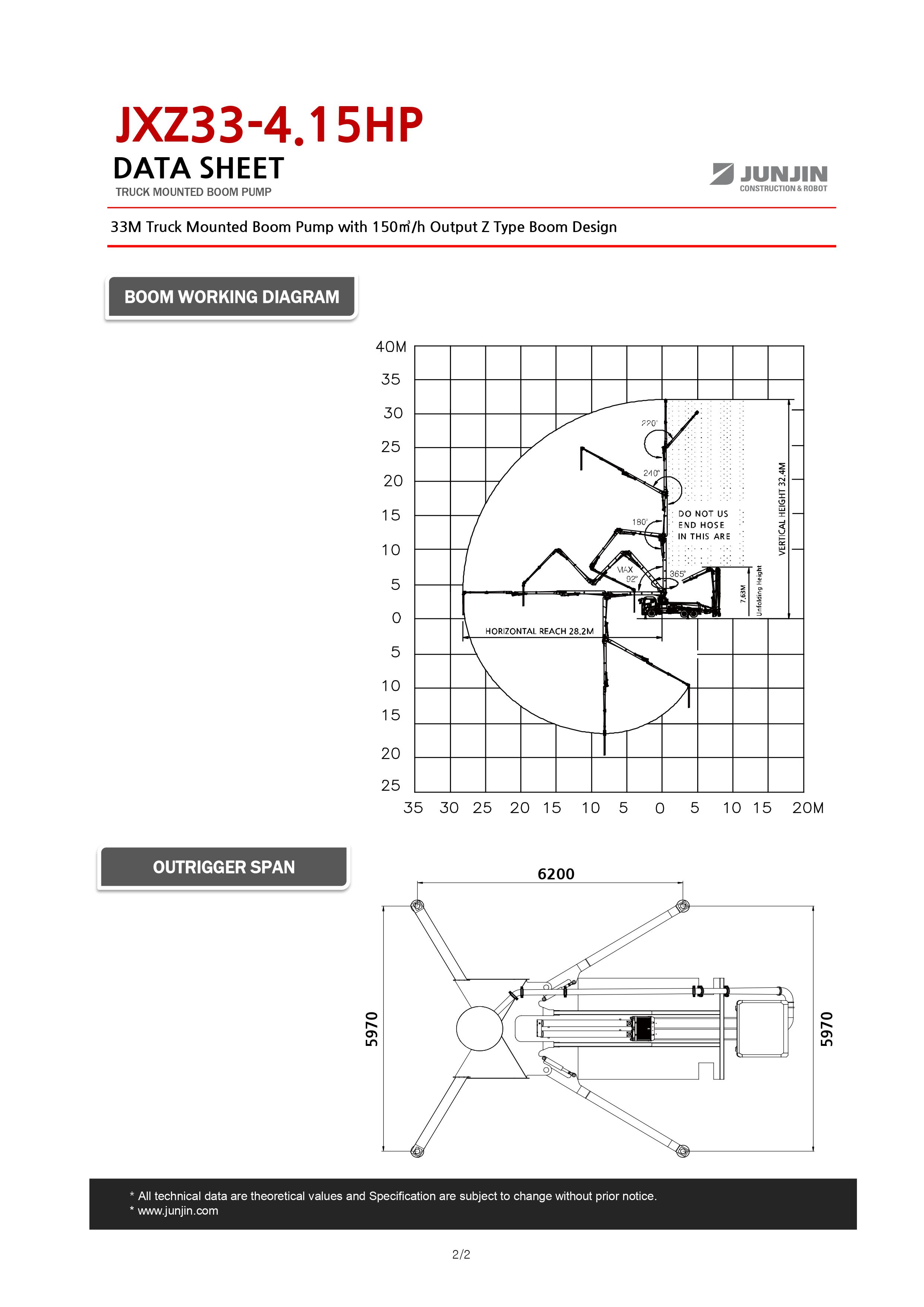

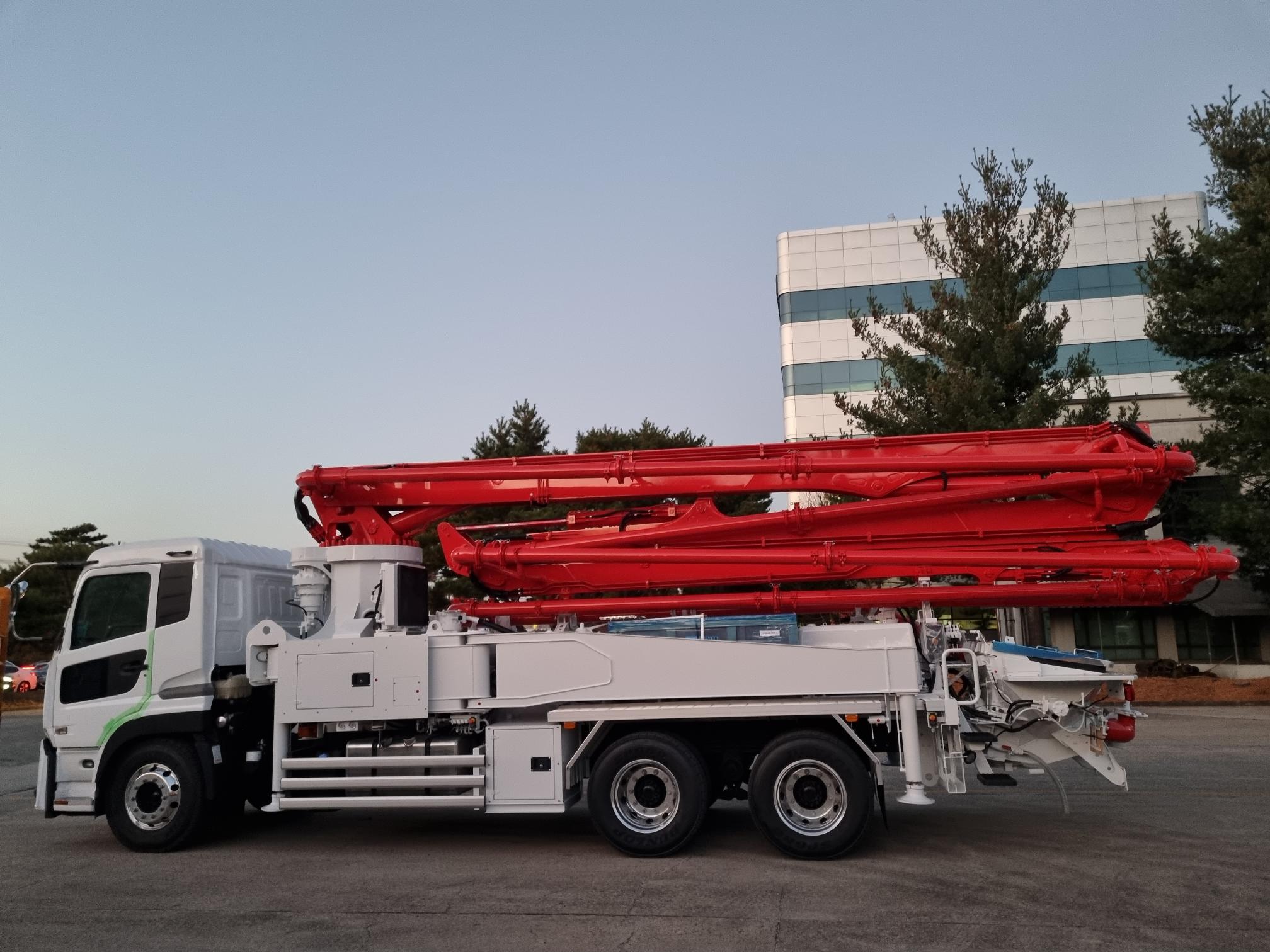

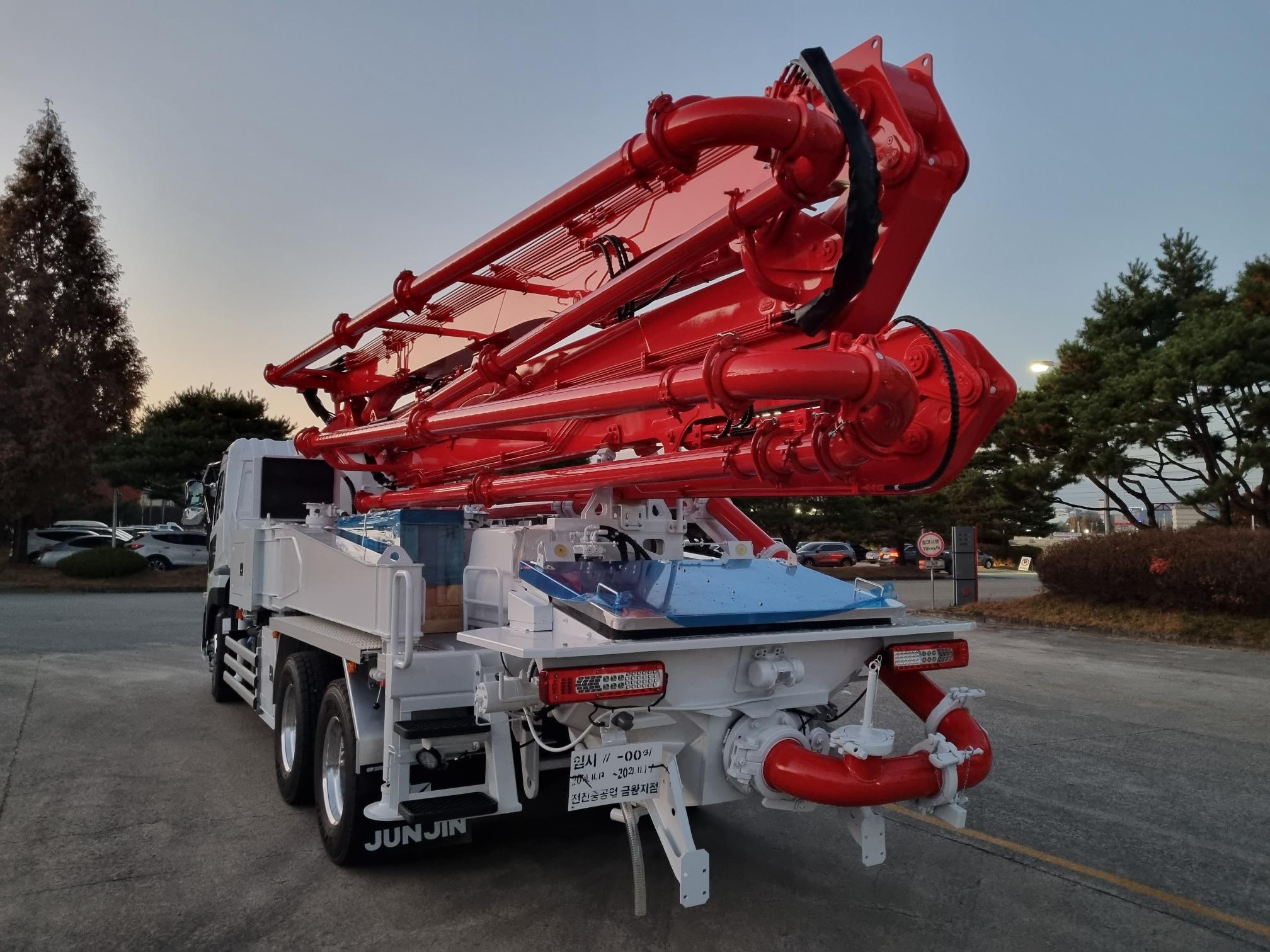

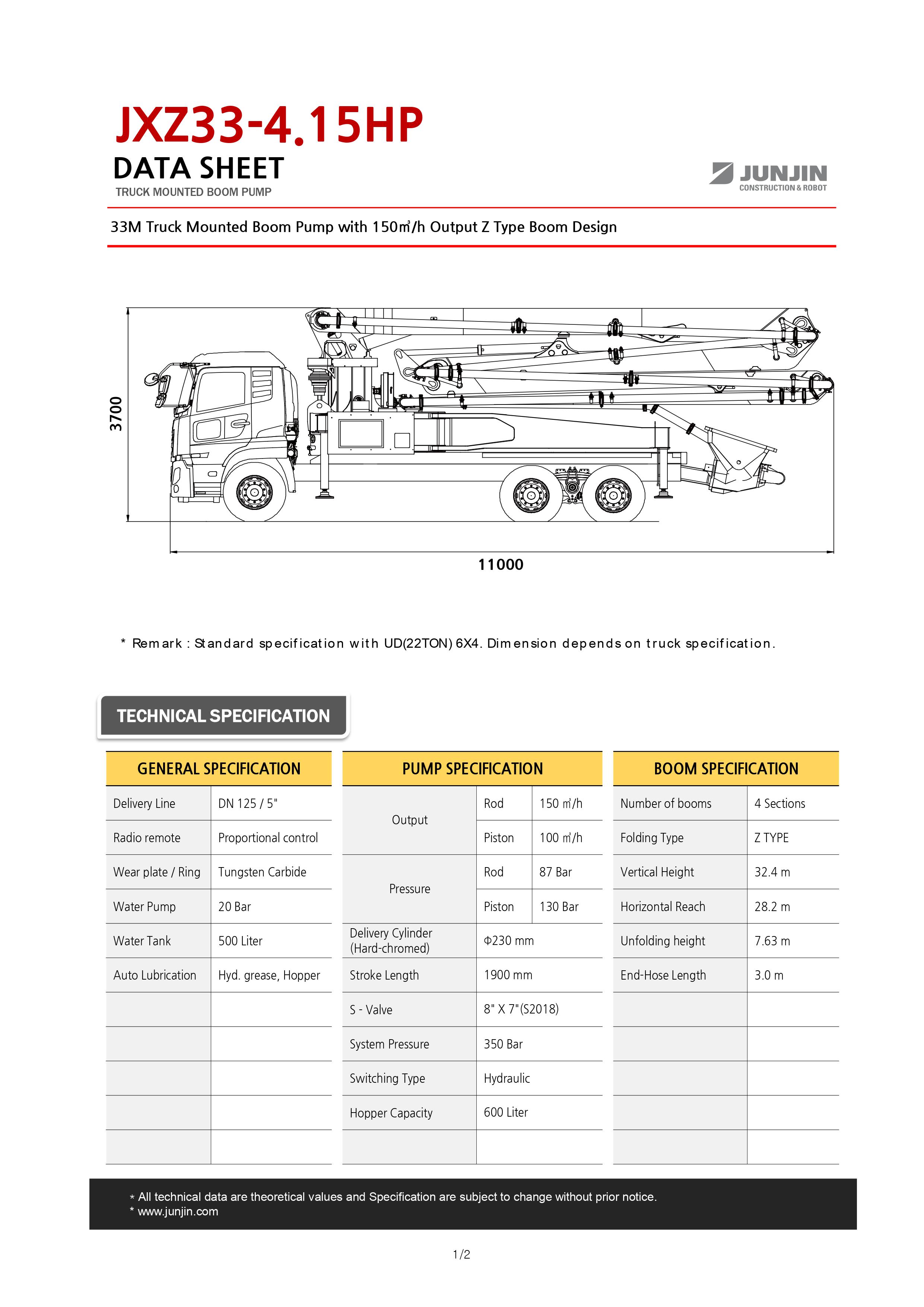

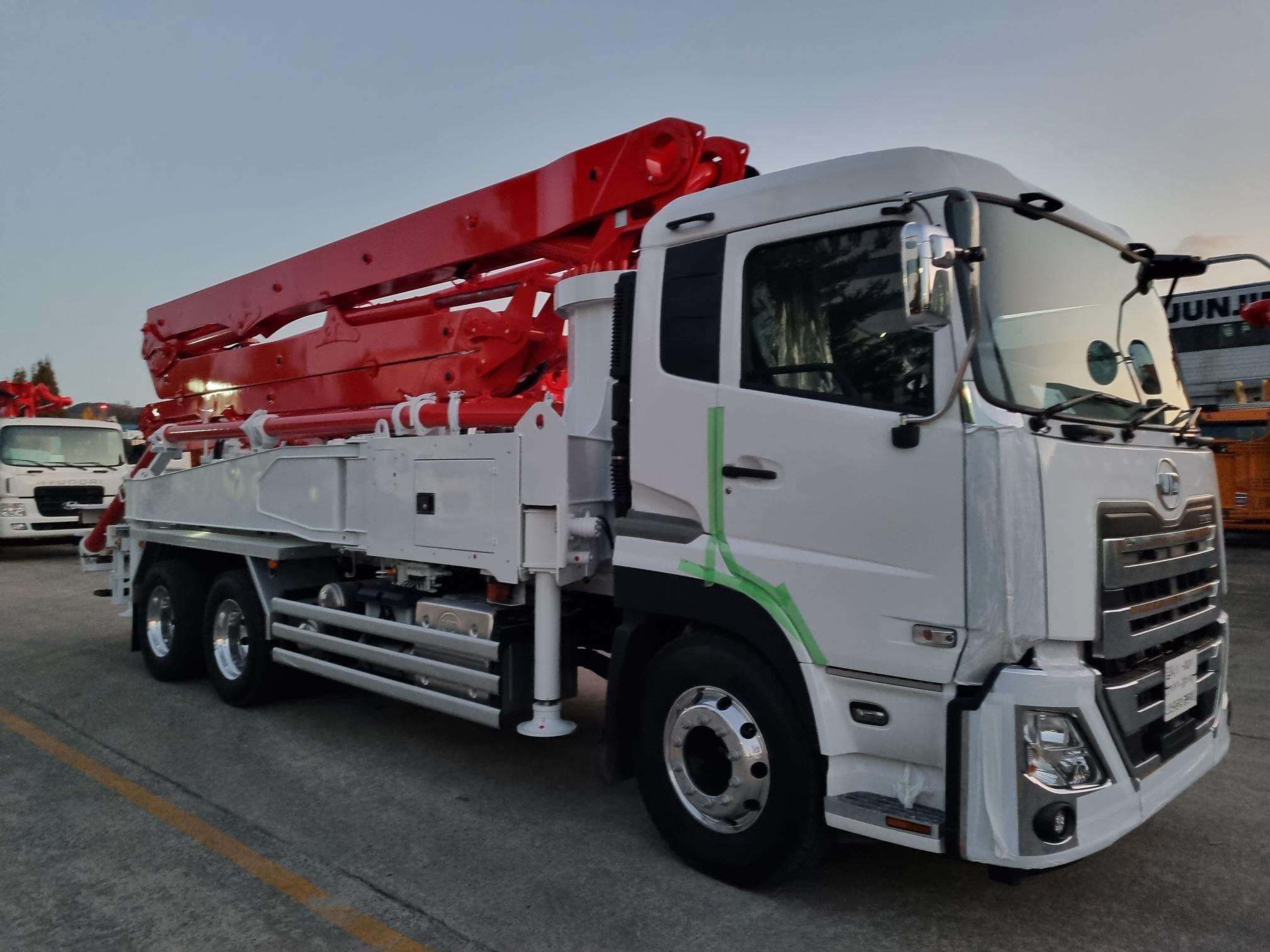

建筑机械 混凝土泵车 39 ~ 30M JXZ33-4.15HP (For JP) JXZ33-4.15HP Customized For JAPAN Market 类型 Z TYPE 底盘 UD TRUCK 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 150 ㎥/h / Piston 100 ㎥/h Pressure Rod 87 Bar / Piston 130 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 1900 mm S - Valve 8 X 7 System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 4 Sections Folding Type Z TYPE Vertical Height 32.4 m Horizontal Reach 28.2 m Unfolding height 7.63 m End-Hose Length 3.0 m DIMENSIONS & DIAGRAM
