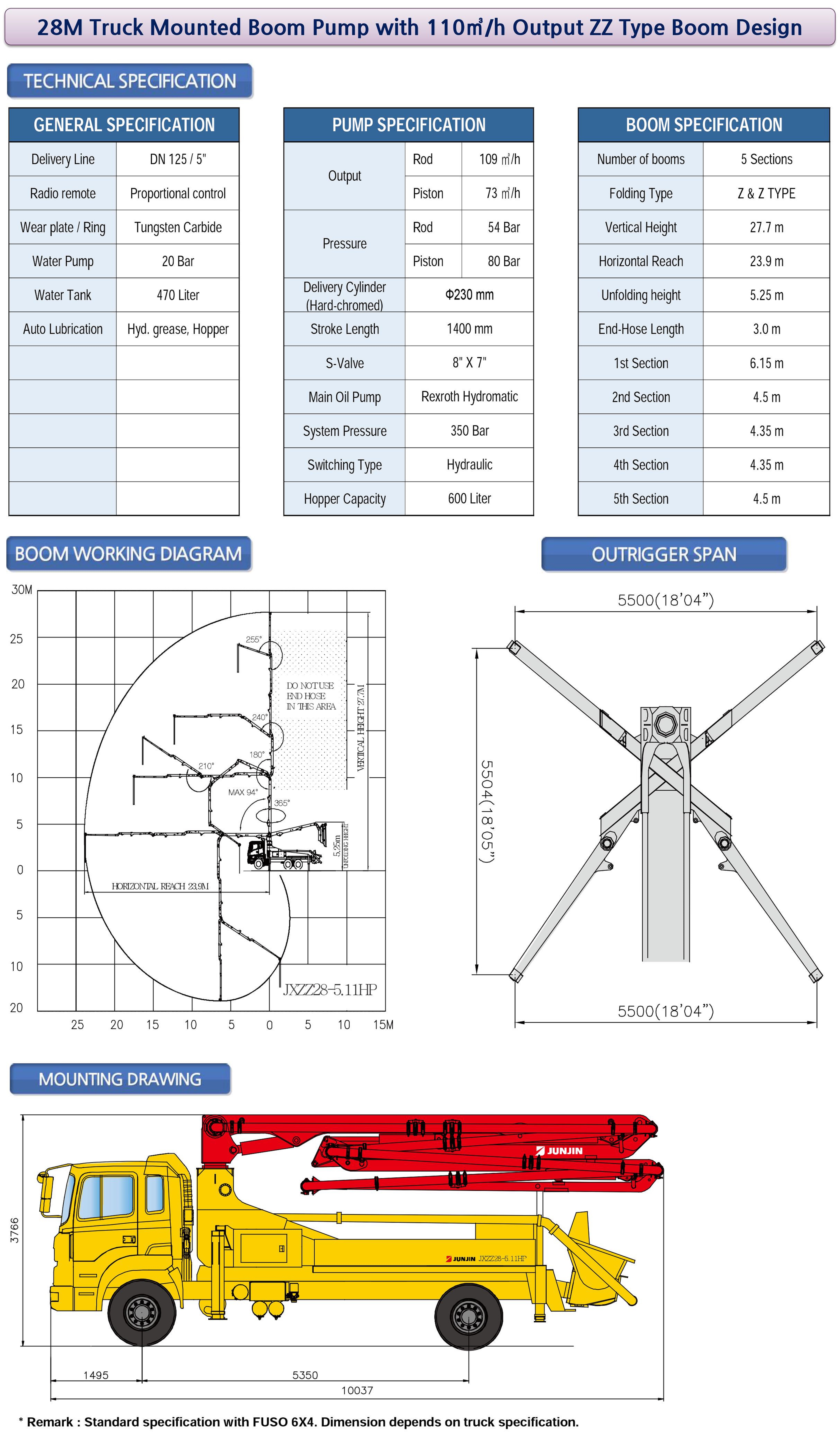

建筑机械 混凝土泵车 29 ~ 18M JXZZ28-5.11HP Suitable for narrow areas and highly versatile. 类型 ZZ TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 470 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 109 ㎥/h / Piston 73 ㎥/h Pressure Rod 54 Bar / Piston 80 Bar Delivery Cylinder (Hard-chromed) Φ 230 mm Stroke Length 1400 mm S - Valve 8 X 7 Main Oil Pump Rexroth Hydromatic System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 500 Liter Number of booms 5 Sections Folding Type Z&Z TYPE Vertical Height 27.7 m Horizontal Reach 23.9 m Unfolding height 5.25 m End-Hose Length 3.0 m 1st Section 6.15 m 2nd Section 4.5 m 3rd Section 4.35 m 4th Section 4.35 m 5th Section 4.5 m DIMENSIONS & DIAGRAM
