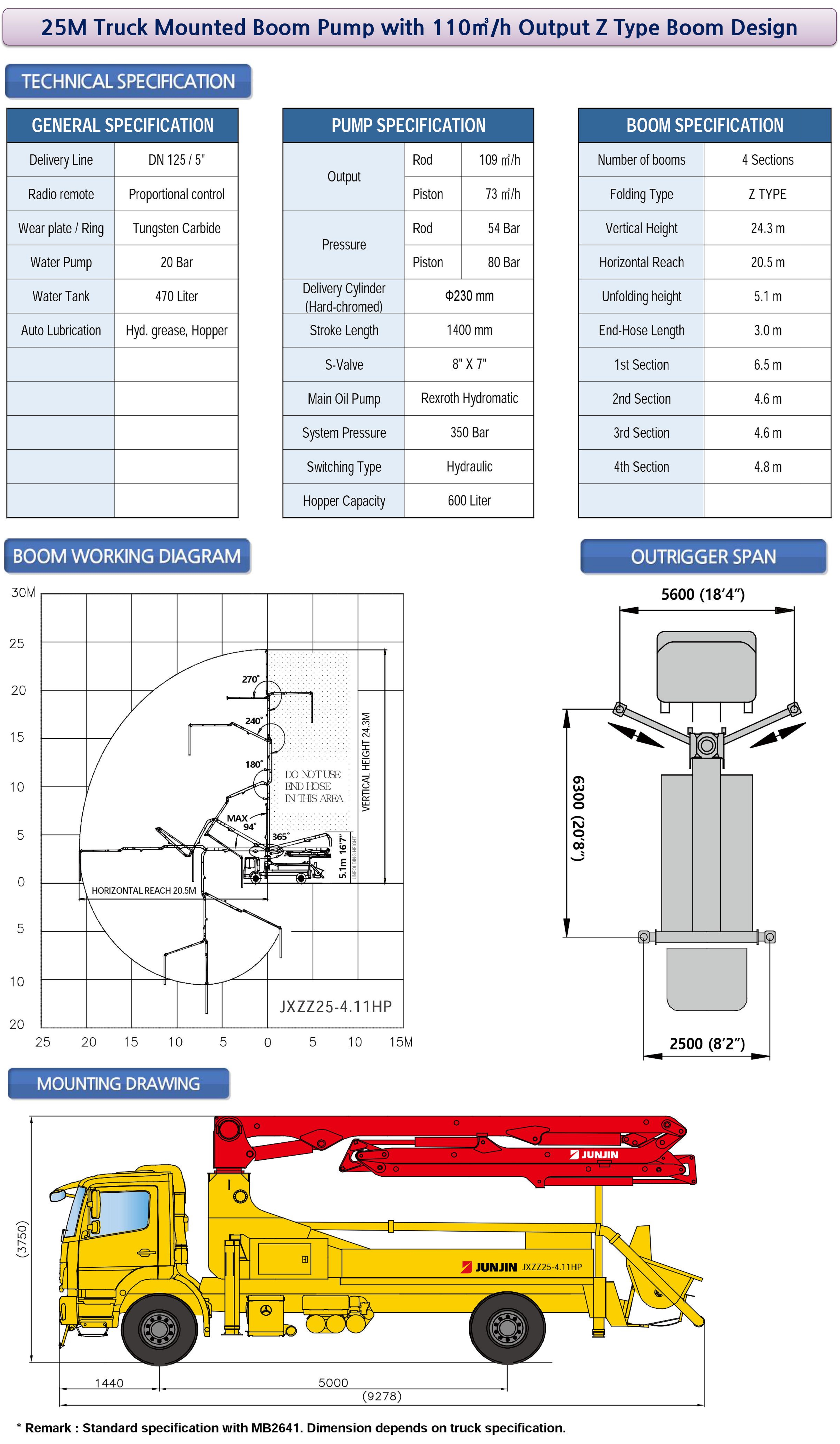

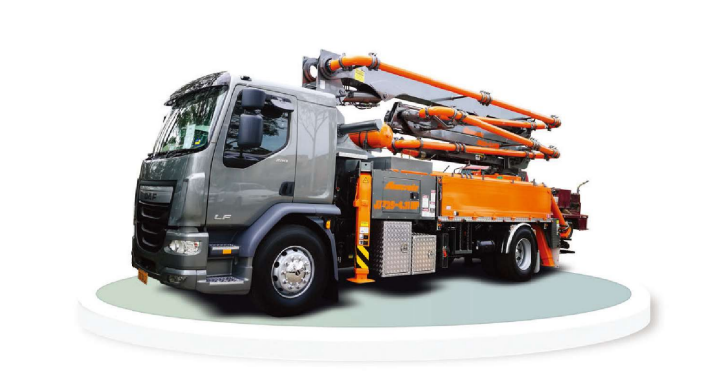

建筑机械 混凝土泵车 29 ~ 18M JXZ25-4.11HP Suitable for urban environments where working space is limited. 类型 Z TYPE 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 470 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 109 ㎥/h / Piston 73 ㎥/h Pressure Rod 54 Bar / Piston 80 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 1400 mm S-Valve 8 X 7 Main Oil Pump Rexroth Hydromatic System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 4 Sections Folding Type Z TYPE Vertical Height 24.3 m Horizontal Reach 20.5 m Unfolding height 5.1 m End-Hose Length 3.0 m 1st Section 6.5 m 2nd Section 4.6 m 3rd Section 4.6 m 4th Section 4.8 m DIMENSIONS & DIAGRAM
