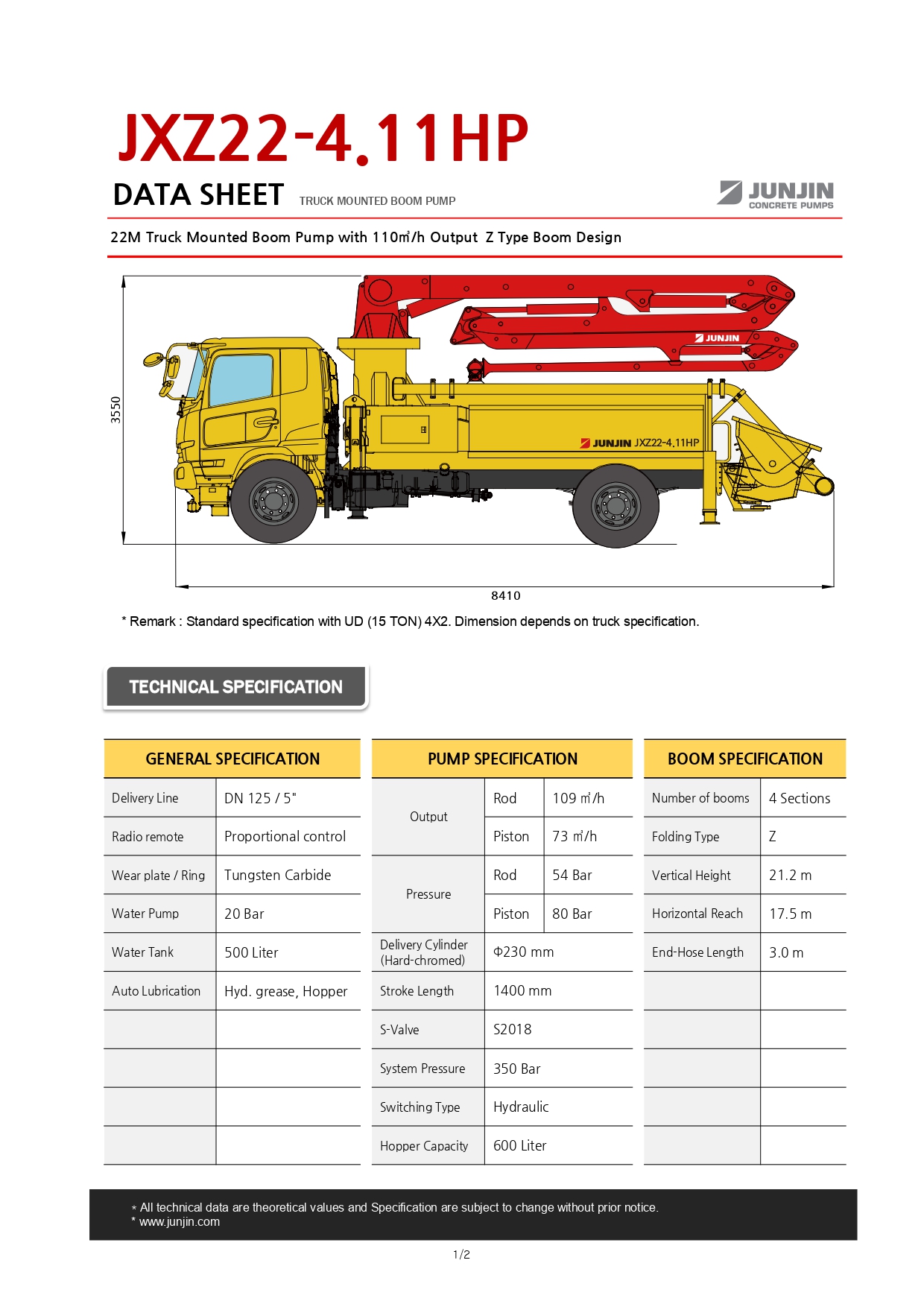

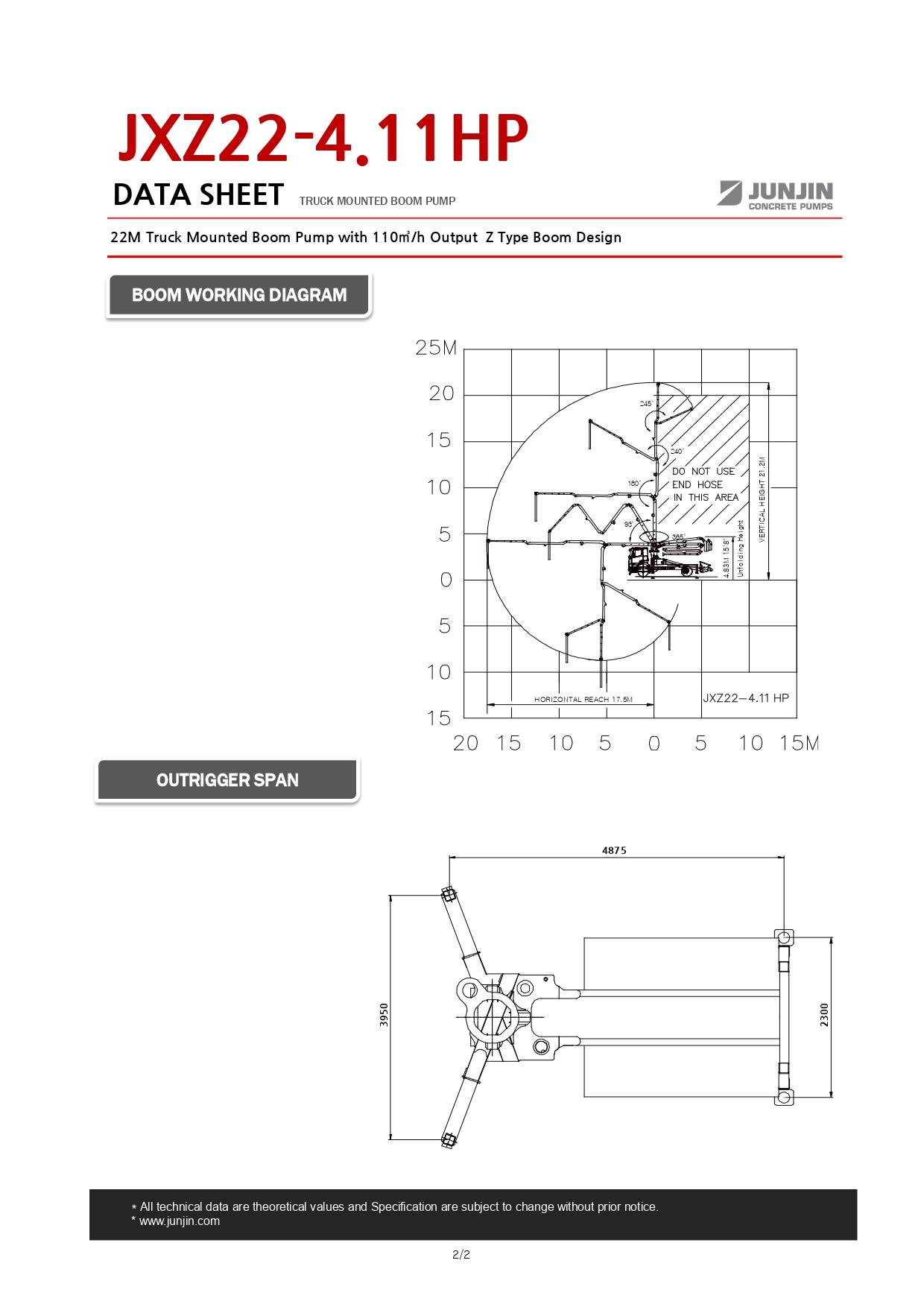

建筑机械 混凝土泵车 29 ~ 18M JXZ22-4.11HP (For JP) Customized for Japan. Different side of Pipe line and special Hopper. 类型 Z TYPE 底盘 ISUZU TRUCK 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 109 ㎥/h / Piston 73 ㎥/h Pressure Rod 54 Bar / Piston 80 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 1400 mm S-Valve S2018 System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 4 Sections Folding Type Z TYPE Vertical Height 21.2 m Horizontal Reach 17.5 m End-Hose Length 3.0 m DIMENSIONS & DIAGRAM
