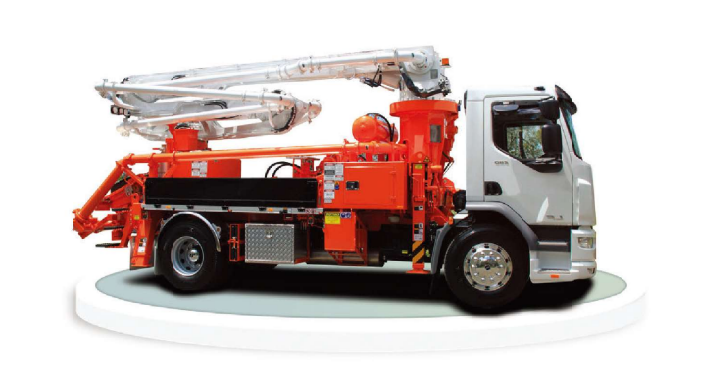

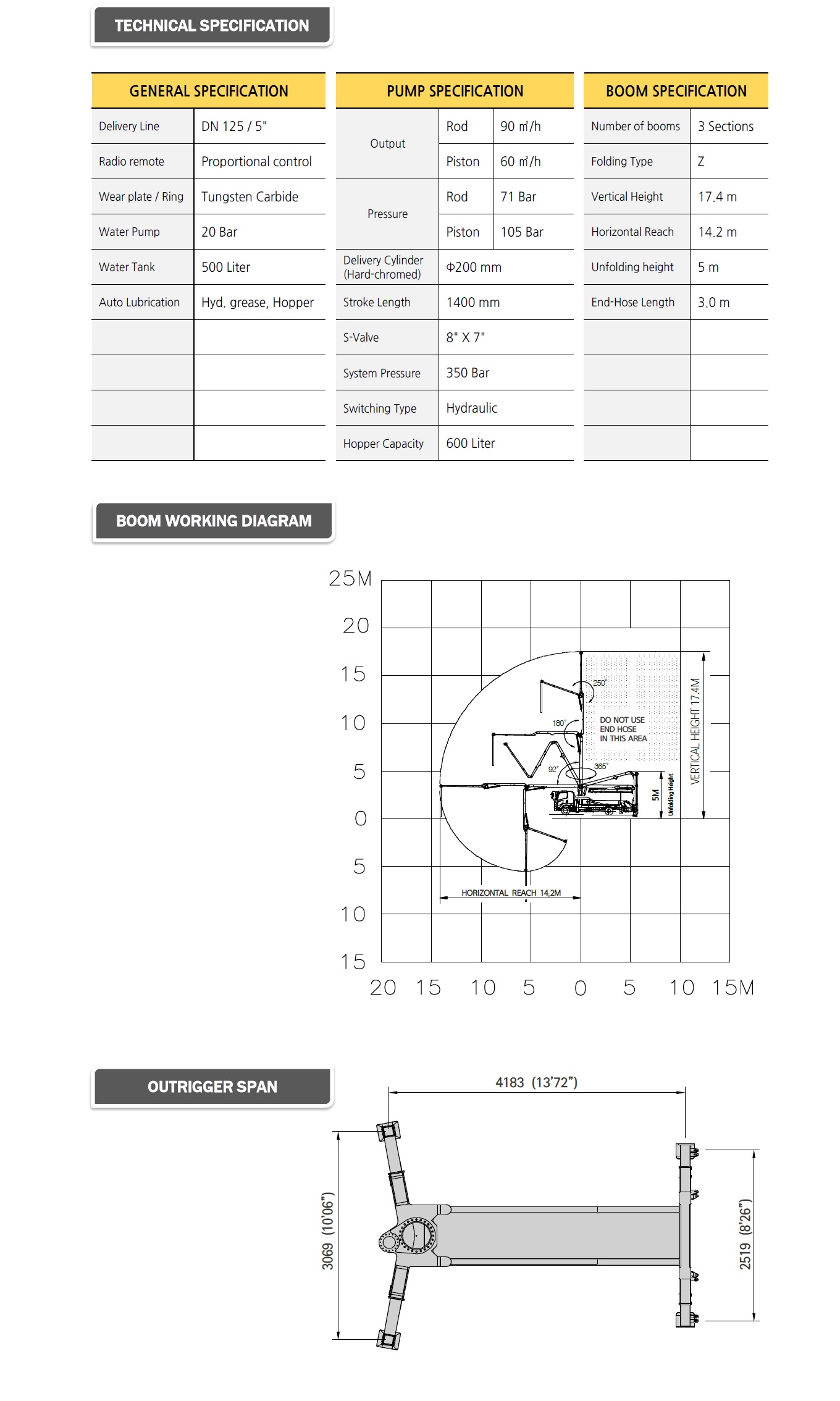

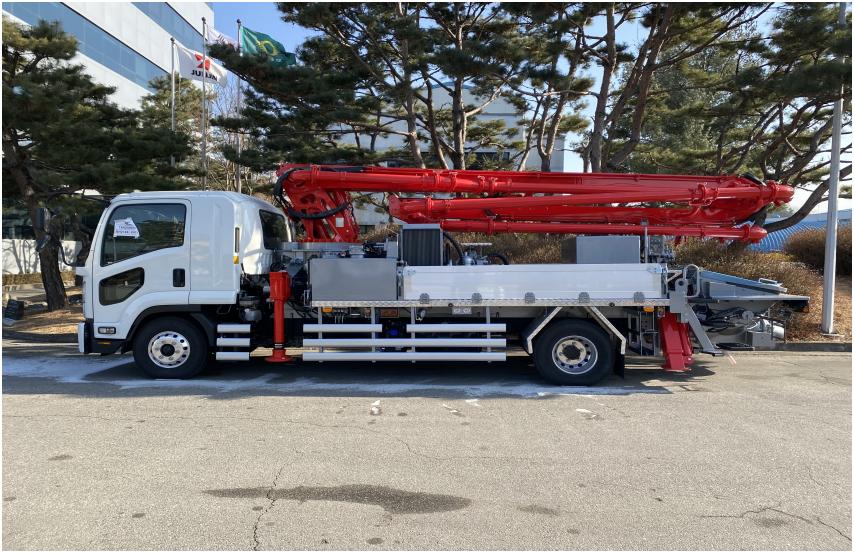

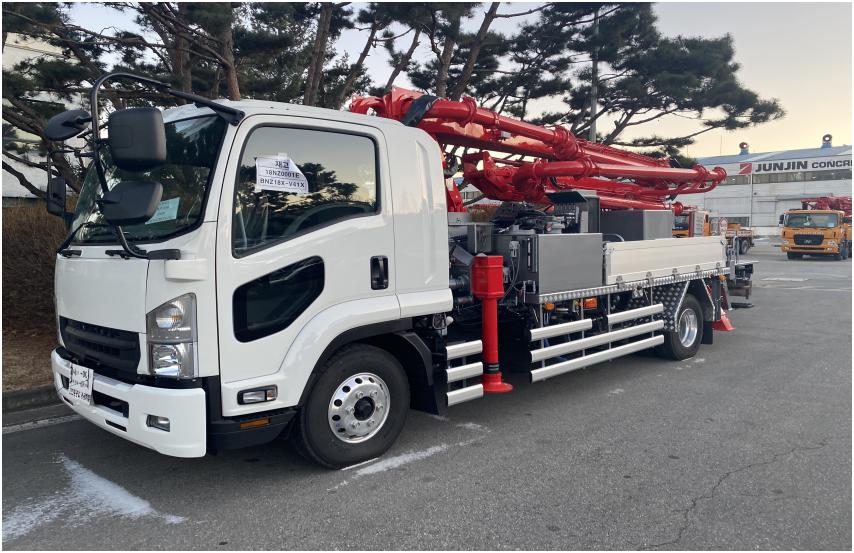

建筑机械 混凝土泵车 29 ~ 18M JXZ18-3.09HP (For JP) JXZ18-3.09HP Customized for JAPAN Market 类型 Z TYPE 底盘 ISUZU TRUCK 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 90 ㎥/h / Piston 60 ㎥/h Pressure Rod 71 Bar / Piston 105 Bar Delivery Cylinder (Hard-chromed) Φ200 mm Stroke Length 1400 mm S - Valve 8 X 7 System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 3 Sections Folding Type Z TYPE Vertical Height 17.4 m Horizontal Reach 14.2 m Unfolding height 5 m End-Hose Length 3.0 m DIMENSIONS & DIAGRAM
