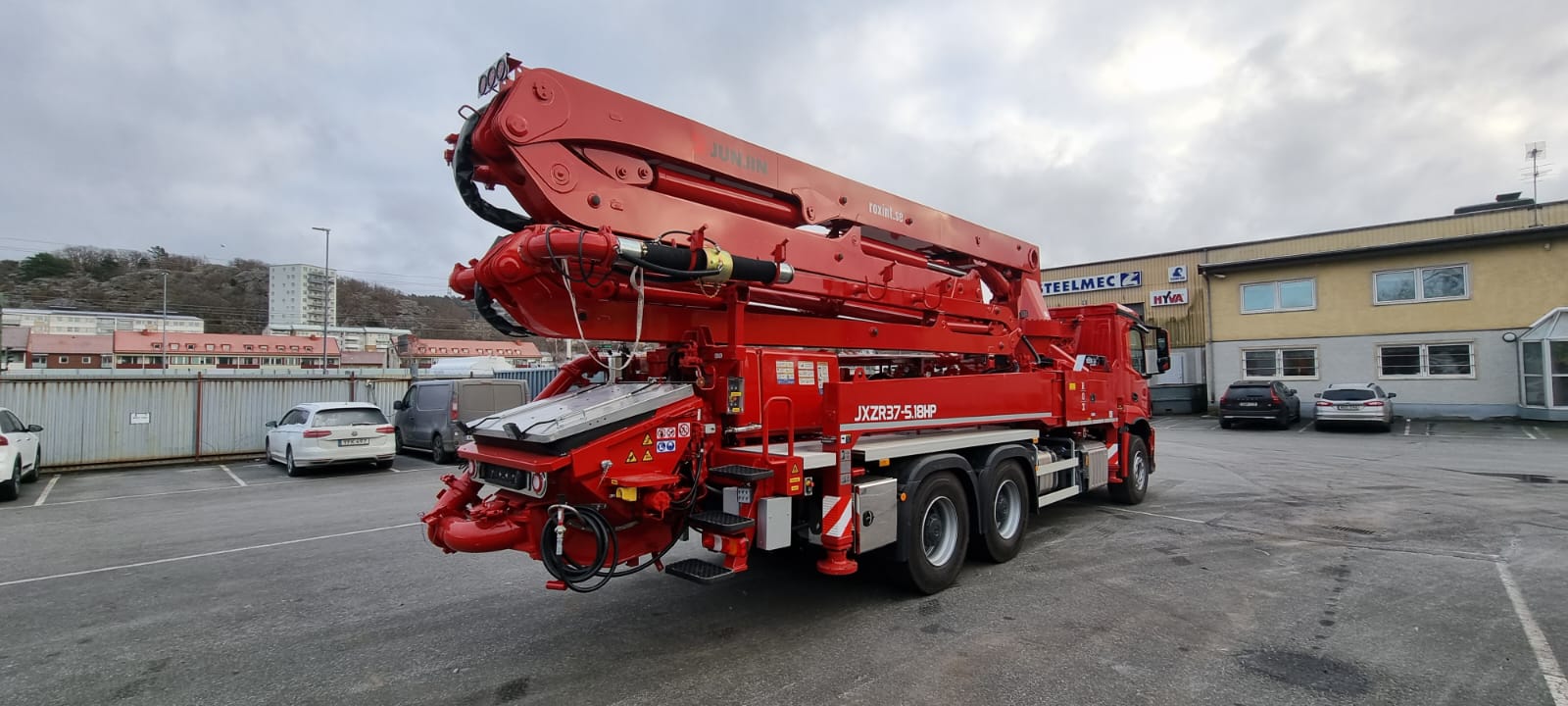

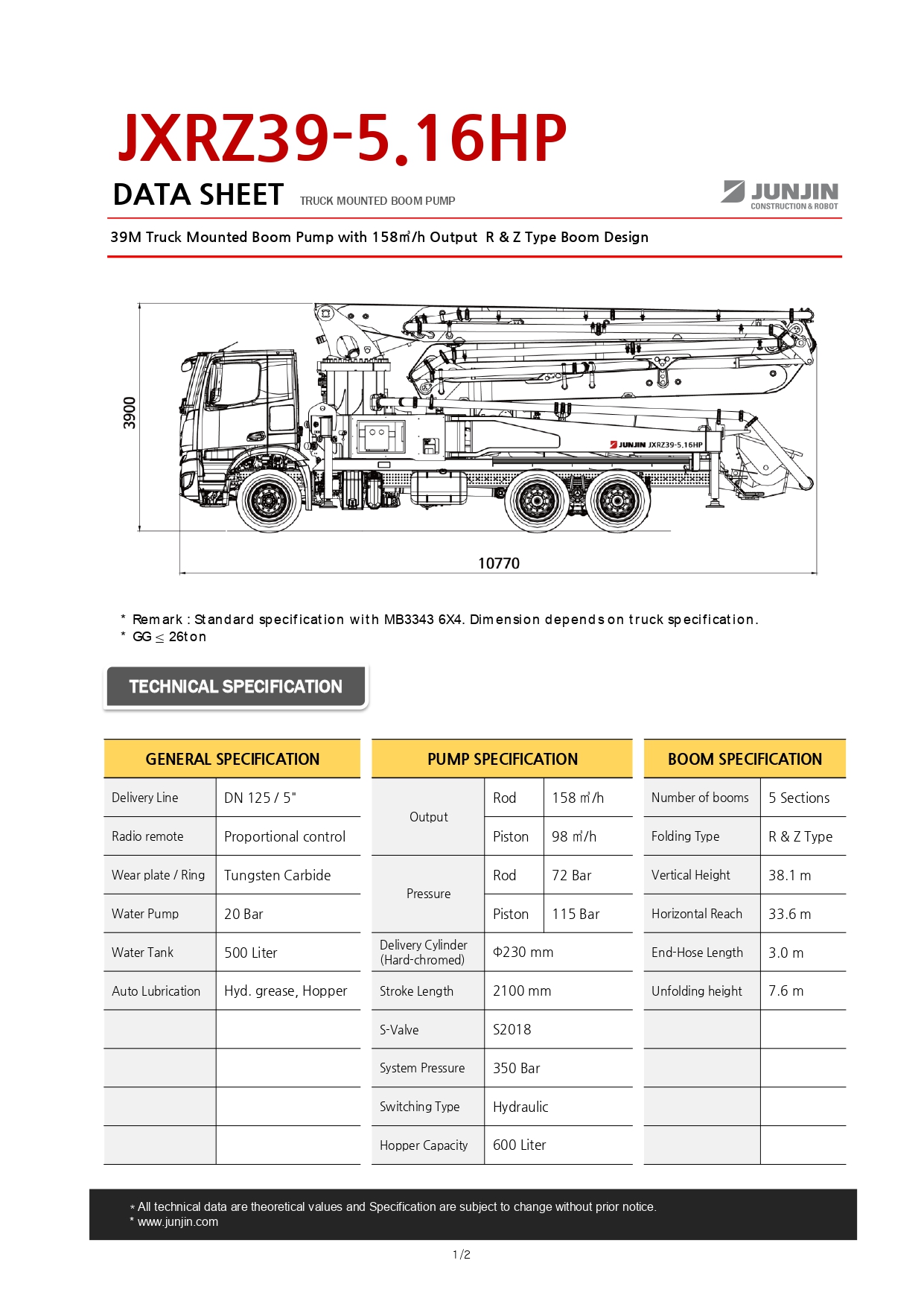

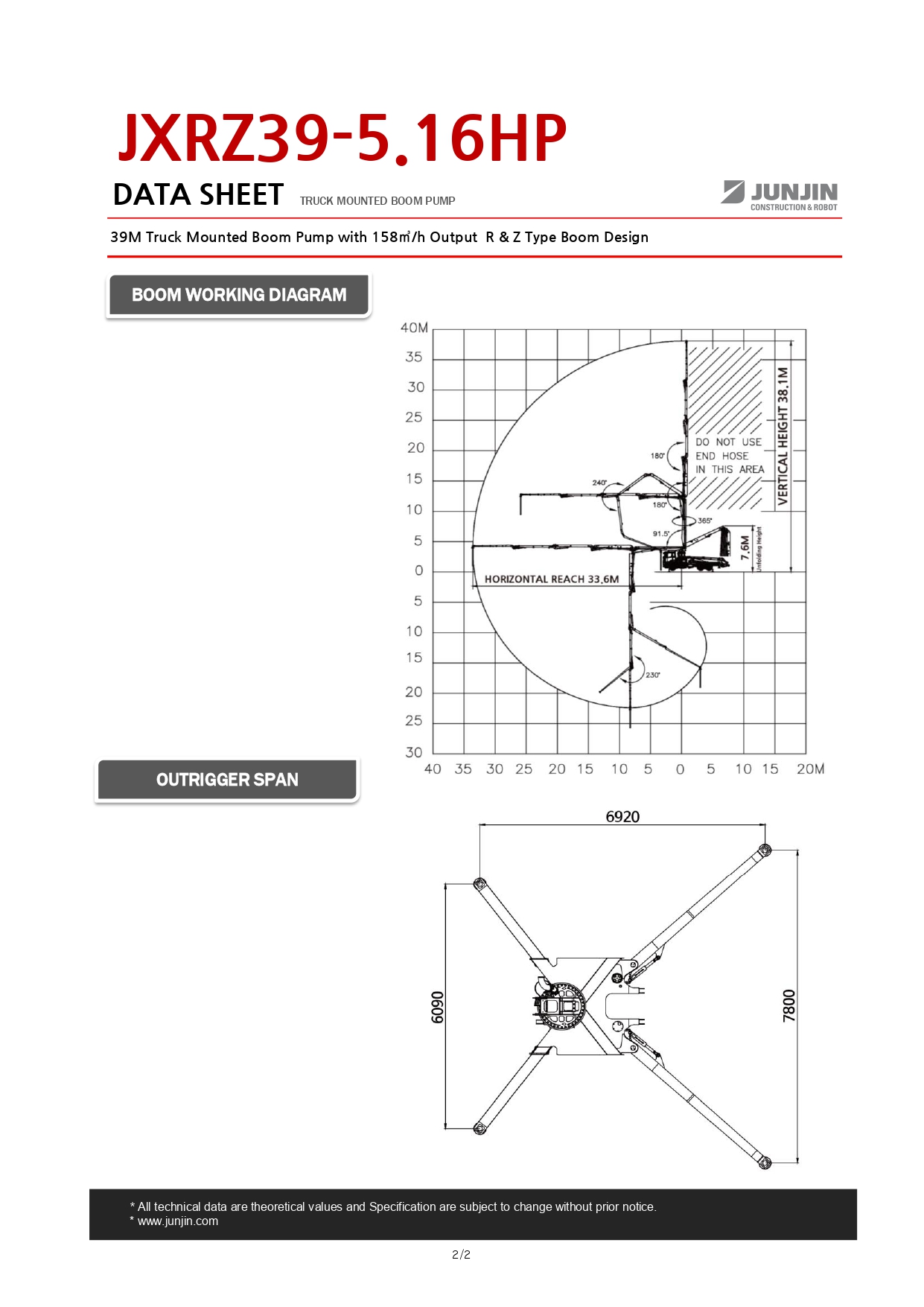

建筑机械 混凝土泵车 39 ~ 30M JXRZ39-5.16HP New weight lightening 39M model 类型 RZ 下载参数 SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S-Valve S2018 System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type R & Z Type Vertical Height 38.1 m Horizontal Reach 33.6 m End-Hose Length 3.0 m Unfolding height 7.6 m DIMENSIONS & DIAGRAM
