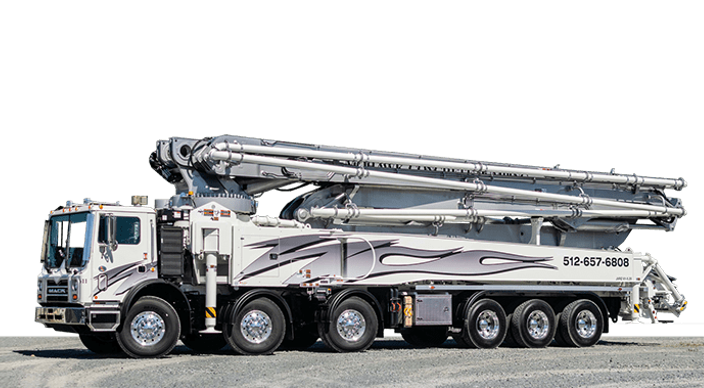

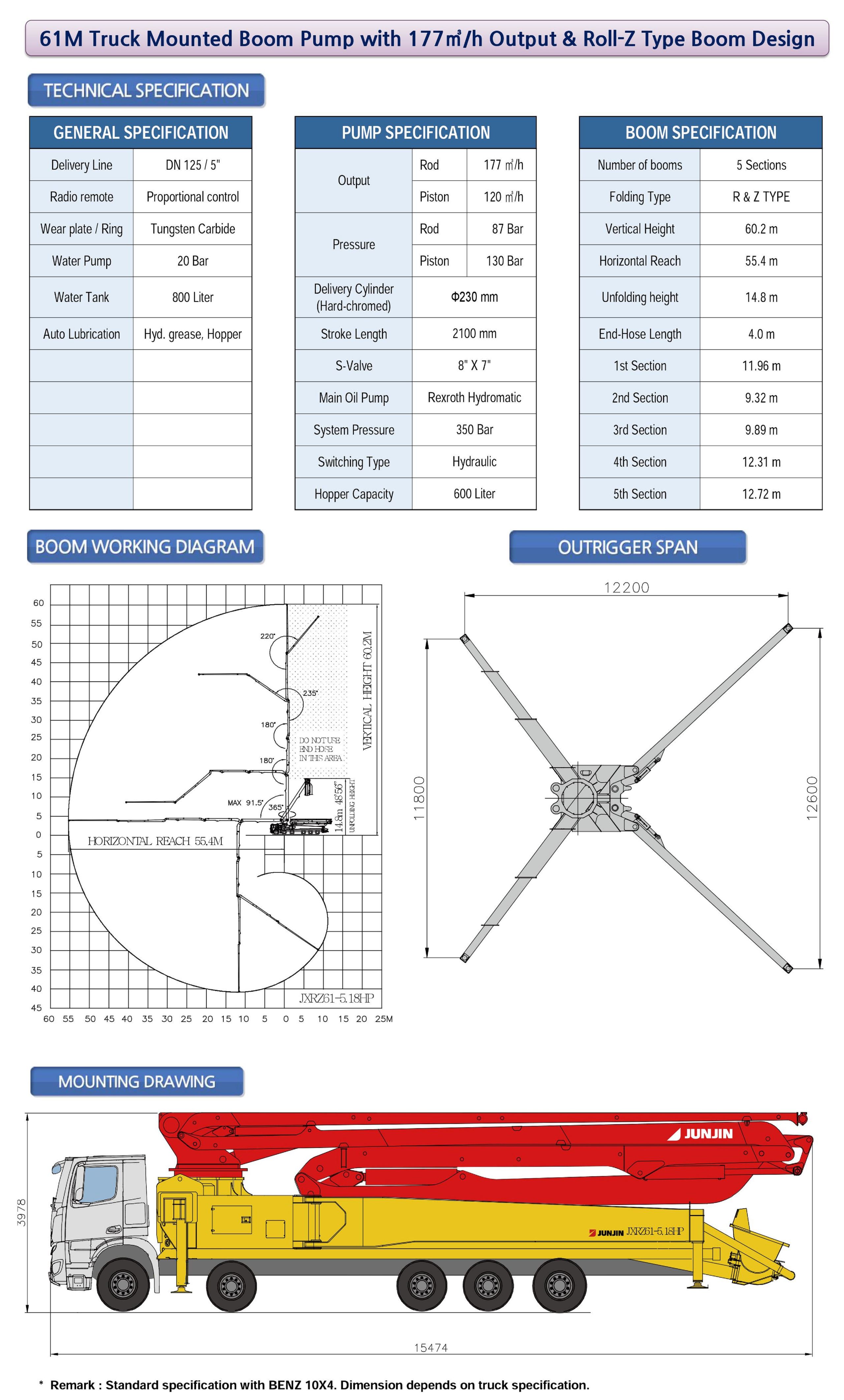

建設機械 コンクリートポンプ車 70 ~ 50M JXRZ61-5.18HP 61meter Boom, launching 2017!! タイプ RZ TYPE スペックダウンロード SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 800 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 177 ㎥/h / Piston 120 ㎥/h Pressure Rod 87 Bar / Piston 130 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S - Valve S2018 System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 5 Sections Folding Type R & Z TYPE Vertical Height 60.2 m Horizontal Reach 55.4 m Unfolding height 14.8 m End-Hose Length 4.0 m 1st Section 11.96 m 2nd Section 9.32 m 3rd Section 9.89 m 4th Section 12.31 m 5th Section 12.72 m DIMENSIONS & DIAGRAM
![JXRZ61[1].jpg](/data/plupload/o_1fp1a8gds1cu9n3919sq4ke13cha.jpg)
