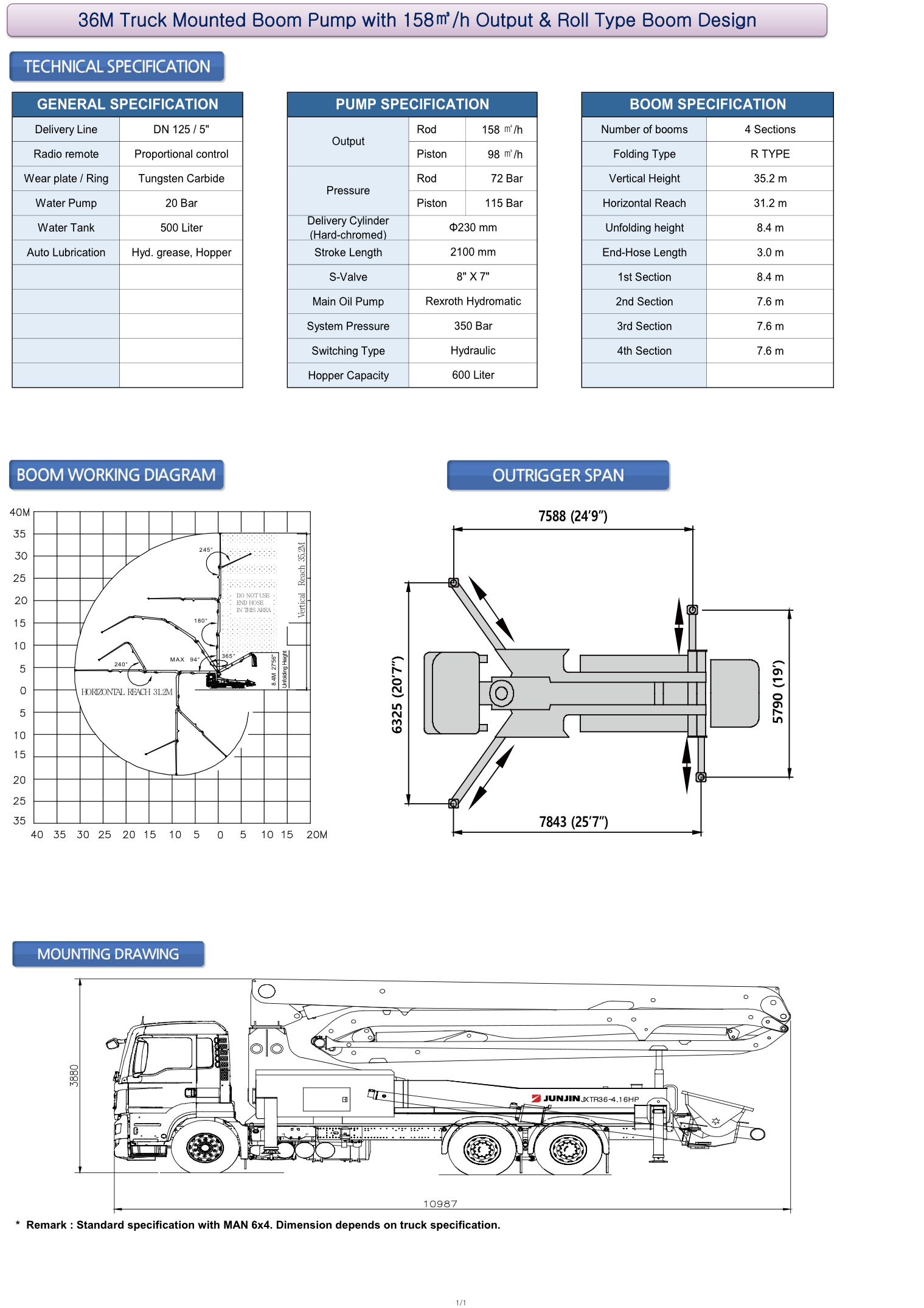

建設機械 コンクリートポンプ車 39 ~ 30M JXTR36-4.16HP JXTR36-4.16HP タイプ R TYPE スペックダウンロード SPECIFICATION Delivery Line DN 125 / 5 Radio remote Proportional control Wear plate / Ring Tungsten Carbide Water Pump 20 Bar Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm S - Valve 8 X 7 System Pressure 350 Bar Switching Type Hydraulic Hopper Capacity 600 Liter Number of booms 4 Sections Folding Type R TYPE Vertical Height 35.2 m Horizontal Reach 31.2 m Unfolding height 8.4 m End-Hose Length 3.0 m DIMENSIONS & DIAGRAM
