建設機械 コンクリートポンプ車 39 ~ 30M

JXZ36-4.16HP (For JP)

Customized for JAPAN. Different side of Pipe line, Special hopper!
Special model for strict regulations!! No matter what the weight regulation is.

タイプ
Z TYPE
トラック
UD TRUCK
スペックダウンロード
  • JXZ36-4.16HP (For JP)
  • JXZ36-4.16HP (For JP)
  • JXZ36-4.16HP (For JP)
  • JXZ36-4.16HP (For JP)
  • JXZ36-4.16HP (For JP)
  • JXZ36-4.16HP (For JP)
  • JXZ36-4.16HP (For JP)
  • JXZ36-4.16HP (For JP)

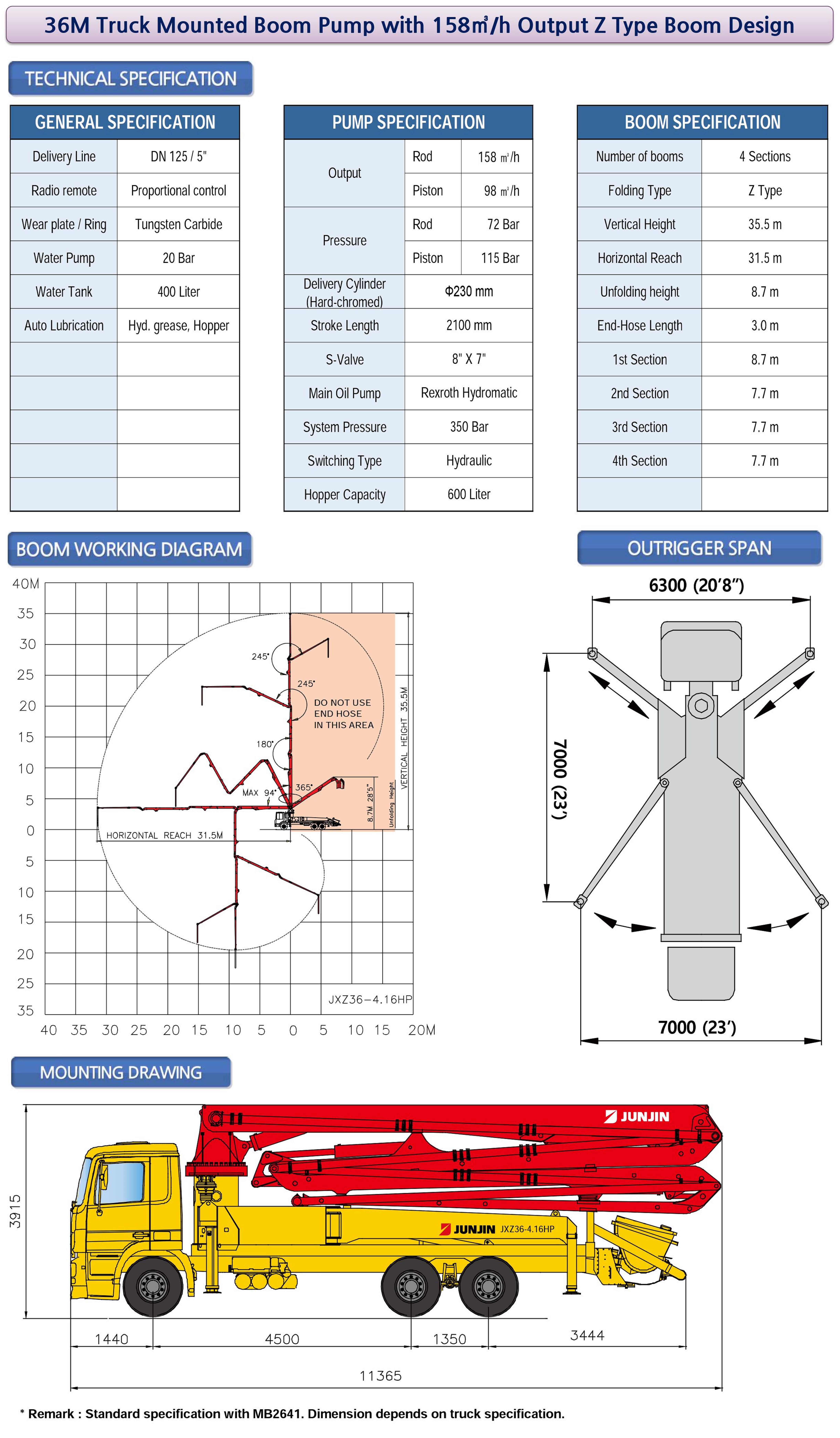

SPECIFICATION
Delivery Line DN 125 / 5 Radio remote Proportional control
Wear plate / Ring Tungsten Carbide Water Pump 20 Bar
Water Tank 400 Liter Auto Lubrication Hyd. grease, Hopper
Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar
Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm
S-Valve 8 X 7 Main Oil Pump Rexroth Hydromatic
System Pressure 350 Bar Switching Type Hydraulic
Hopper Capacity 600 Liter Number of booms 4 Sections
Folding Type Z Type Vertical Height 35.5 m
Horizontal Reach 31.5 m Unfolding height 8.7 m
End-Hose Length 3.0 m 1st Section 8.7 m
2nd Section 7.7 m 3rd Section 7.7 m
4th Section 7.4 m
DIMENSIONS & DIAGRAM
