建設機械 コンクリートポンプ車 39 ~ 30M

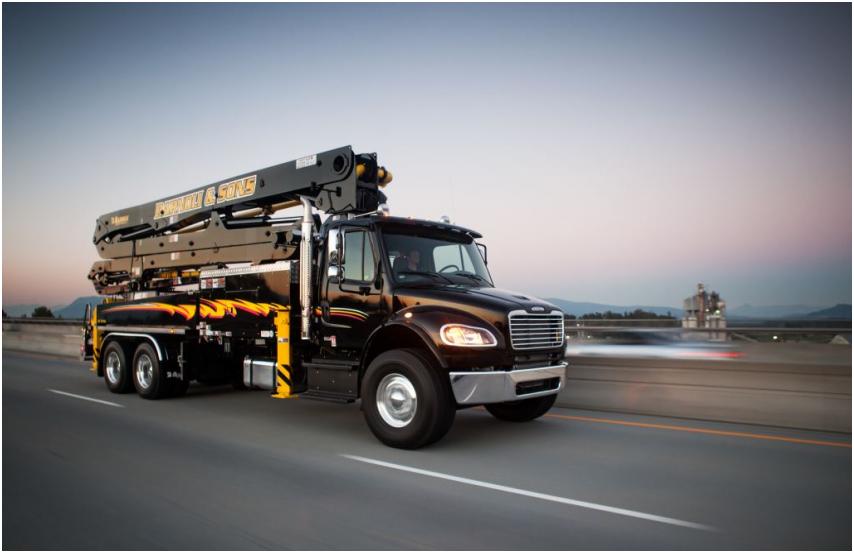

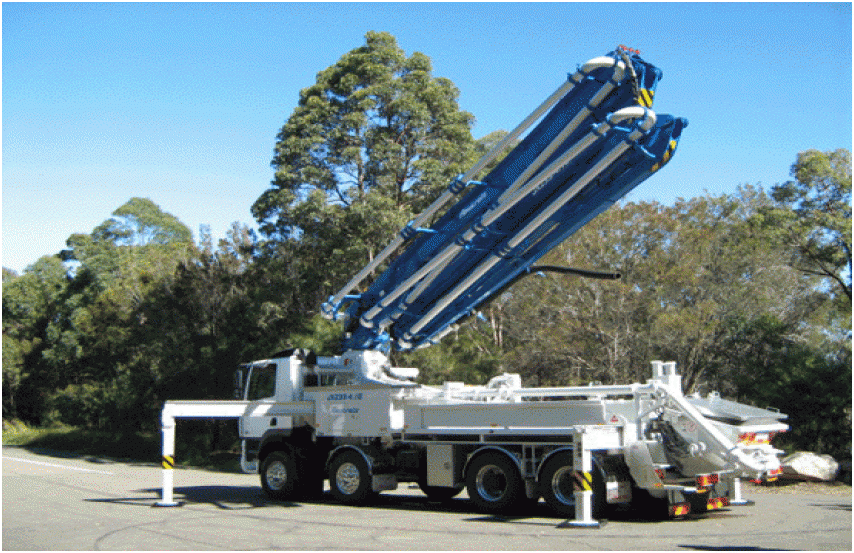

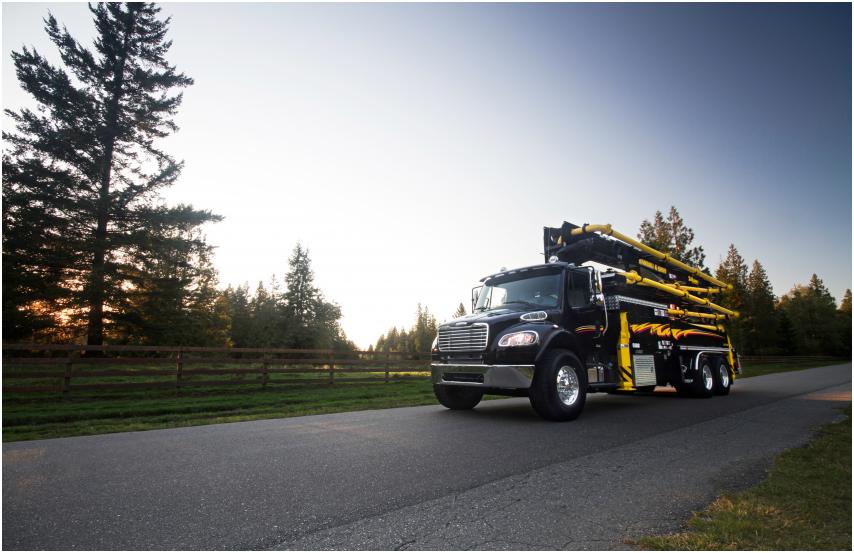

JXZ33-4.16HP

The most desirable footprint in the industry
The small footprint maintains maximum stability
allowing operators to easily navigate cluttered jobsites.

タイプ
Z TYPE
スペックダウンロード
  • JXZ33-4.16HP
  • JXZ33-4.16HP
  • JXZ33-4.16HP
  • JXZ33-4.16HP
  • JXZ33-4.16HP
  • JXZ33-4.16HP
  • JXZ33-4.16HP
  • JXZ33-4.16HP
  • JXZ33-4.16HP
  • JXZ33-4.16HP
SPECIFICATION
Delivery Line DN 125 / 5 Radio remote Proportional control
Wear plate / Ring Tungsten Carbide Water Pump 20 Bar
Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper
Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar
Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm
S-Valve 8 X 7 Main Oil Pump Rexroth Hydromatic
System Pressure 350 Bar Switching Type Hydraulic
Hopper Capacity 600 Liter Number of booms 4 Sections
Folding Type Z TYPE Vertical Height 32.5 m
Horizontal Reach 28.5 m Unfolding height 7.6 m
End-Hose Length 3.0 m 1st Section 8.0 m
2nd Section 6.85 m 3rd Section 6.85 m
4th Section 6.8 m

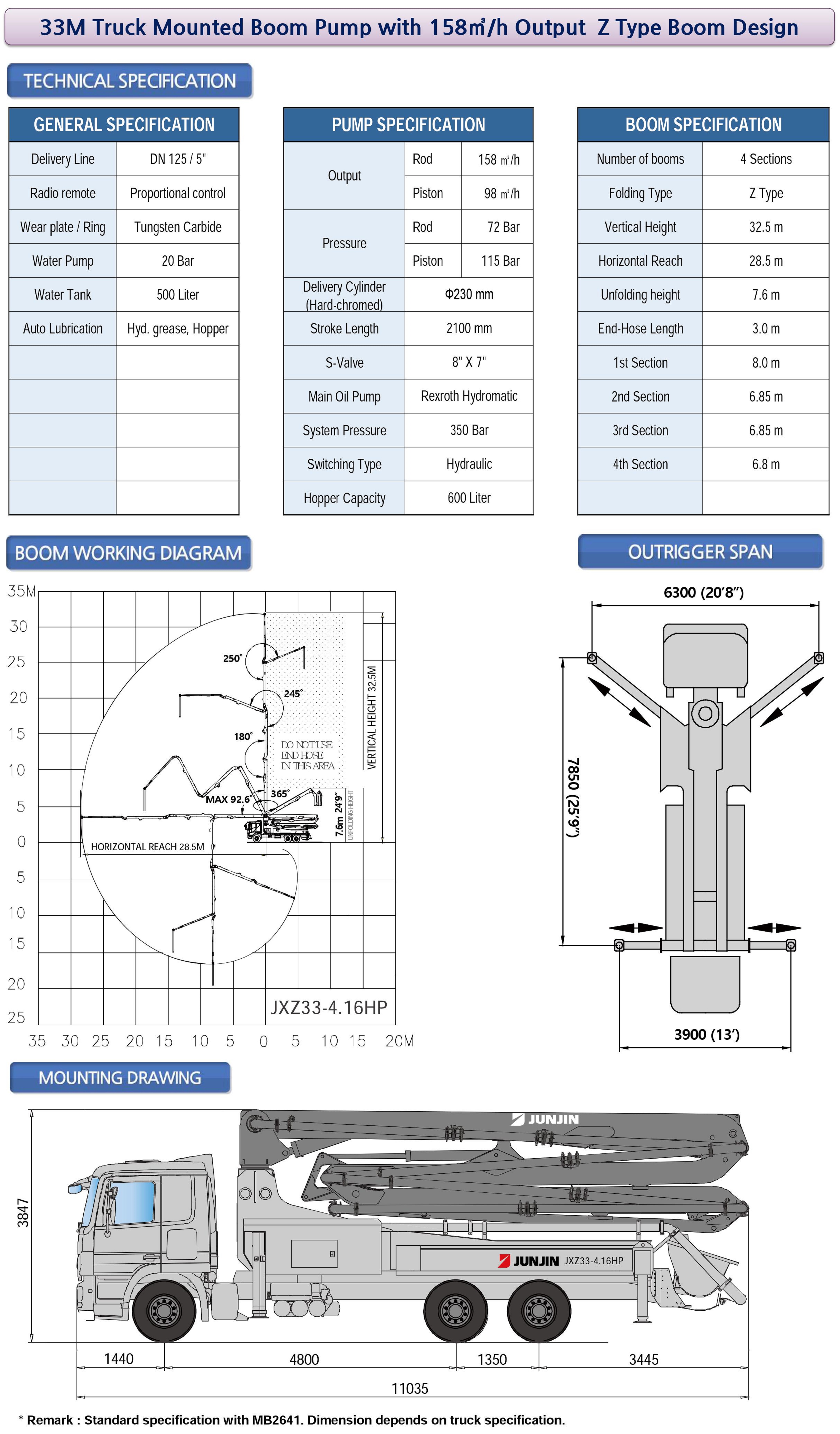

DIMENSIONS & DIAGRAM
