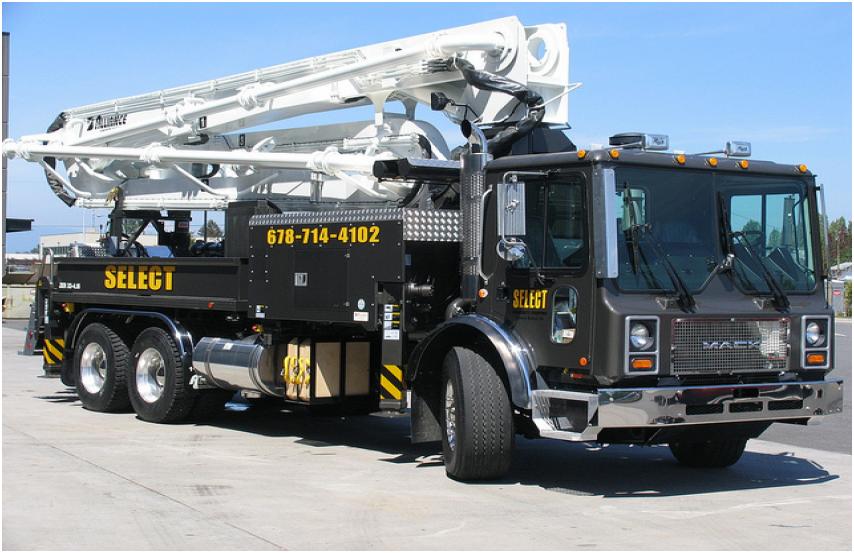

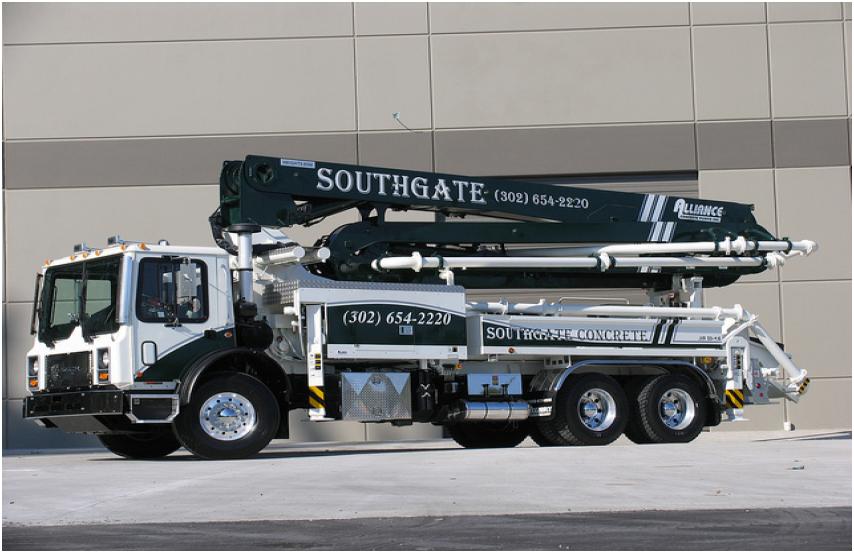

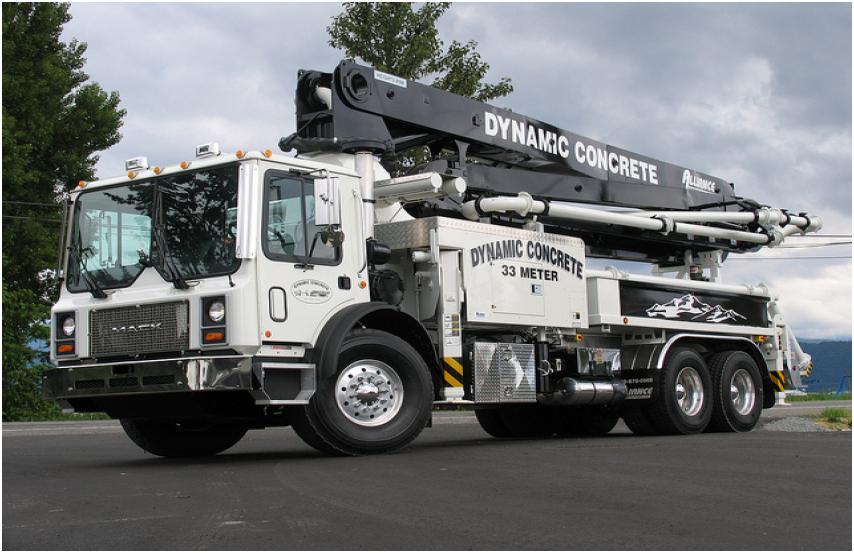

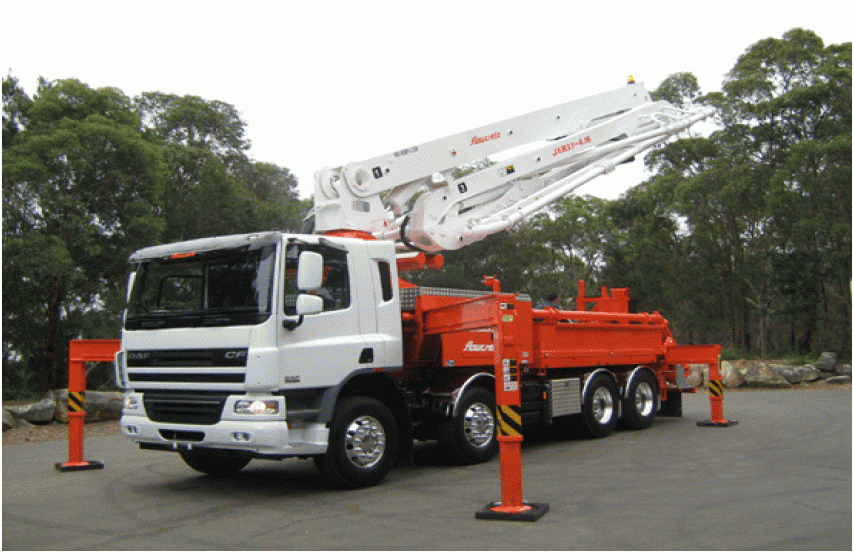

建設機械コンクリートポンプ車 39 ~ 30M

Highly powered and durable, serving all your needs. For inner city use.
The best solution when you need height in tight zones.

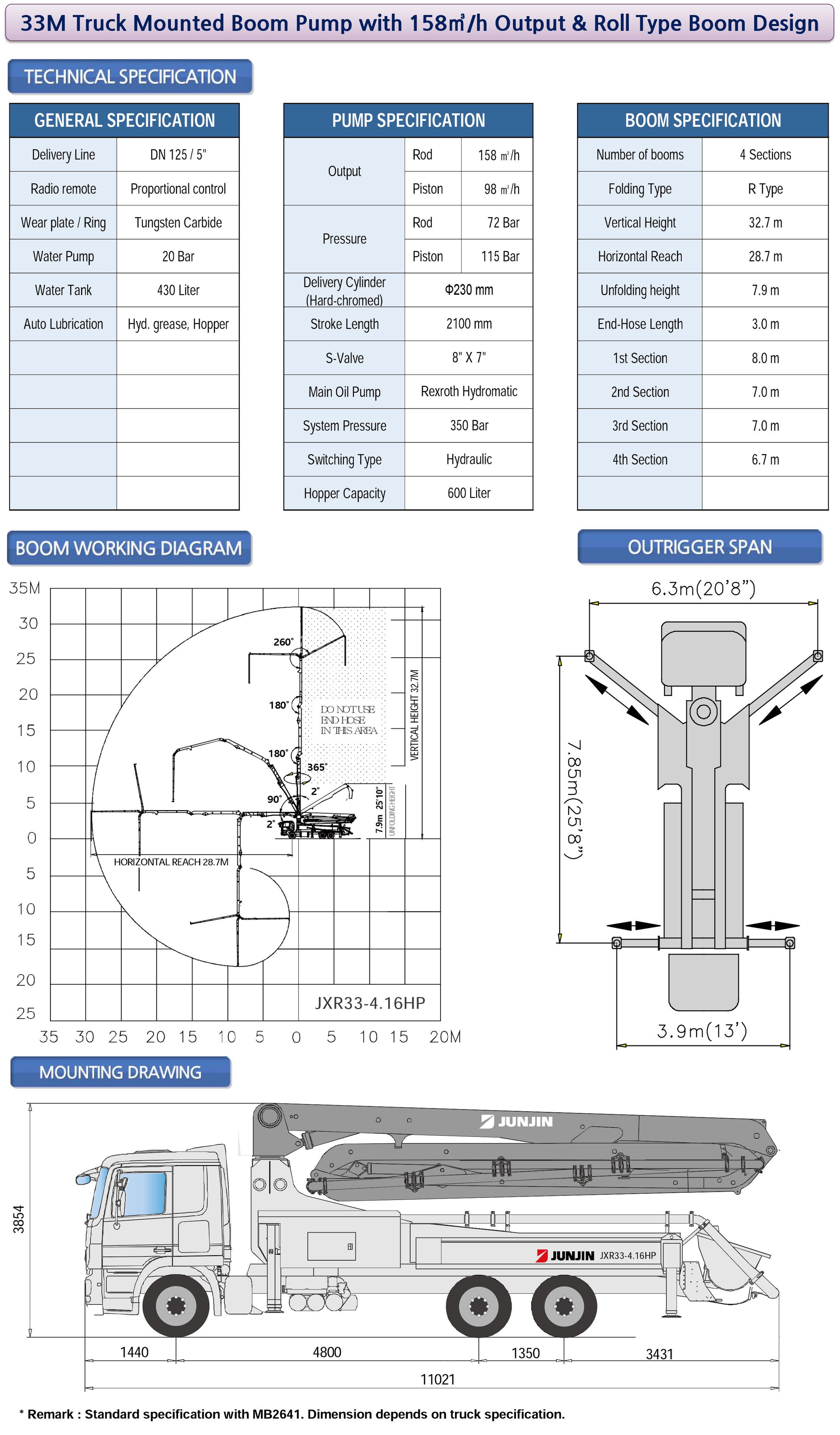

Delivery Line	DN 125 / 5	Radio remote	Proportional control
Wear plate / Ring	Tungsten Carbide	Water Pump	20 Bar
Water Tank	500 Liter	Auto Lubrication	Hyd. grease, Hopper
Output	Rod 158 ㎥/h / Piston 98 ㎥/h	Pressure	Rod 72 Bar / Piston 115 Bar
Delivery Cylinder (Hard-chromed)	Φ230 mm	Stroke Length	2100 mm
S - Valve	8 X 7	Main Oil Pump	Rexroth Hydromatic
System Pressure	350 Bar	Switching Type	Hydraulic
Hopper Capacity	600 Liter	Number of booms	4 Sections
Folding Type	R TYPE	Vertical Height	32.7 m
Horizontal Reach	28.7 m	Unfolding height	7.9 m
End-Hose Length	3.0 m	1st Section	8.0 m
2nd Section	7.0 m	3rd Section	7.0 m
4th Section	6.7 m
