建設機械 コンクリートポンプ車 39 ~ 30M

JXZZ32-5.16HP

You won’t believe what you can do with this one
Optimizing working ability for indoor work, under bridge decks, power-lines or any other situation.

タイプ
ZZ TYPE
スペックダウンロード
  • JXZZ32-5.16HP
  • JXZZ32-5.16HP
  • JXZZ32-5.16HP
  • JXZZ32-5.16HP
  • JXZZ32-5.16HP
  • JXZZ32-5.16HP
  • JXZZ32-5.16HP
  • JXZZ32-5.16HP
  • JXZZ32-5.16HP
  • JXZZ32-5.16HP
SPECIFICATION
Delivery Line DN 125 / 5 Radio remote Proportional control
Wear plate / Ring Tungsten Carbide Water Pump 20 Bar
Water Tank 500 Liter Auto Lubrication Hyd. grease, Hopper
Output Rod 158 ㎥/h / Piston 98 ㎥/h Pressure Rod 72 Bar / Piston 115 Bar
Delivery Cylinder (Hard-chromed) Φ230 mm Stroke Length 2100 mm
S-Valve 8 X 7 Main Oil Pump Rexroth Hydromatic
System Pressure 350 Bar Switching Type Hydraulic
Hopper Capacity 600 Liter Number of booms 5 Sections
Folding Type ZZ TYPE Vertical Height 31.4 m
Horizontal Reach 27.4 m Unfolding height 6.1 m
End-Hose Length 3.0 m 1st Section 7.3 m
2nd Section 5.2 m 3rd Section 5.0 m
4th Section 5.0 m 5th Section 4.9 m

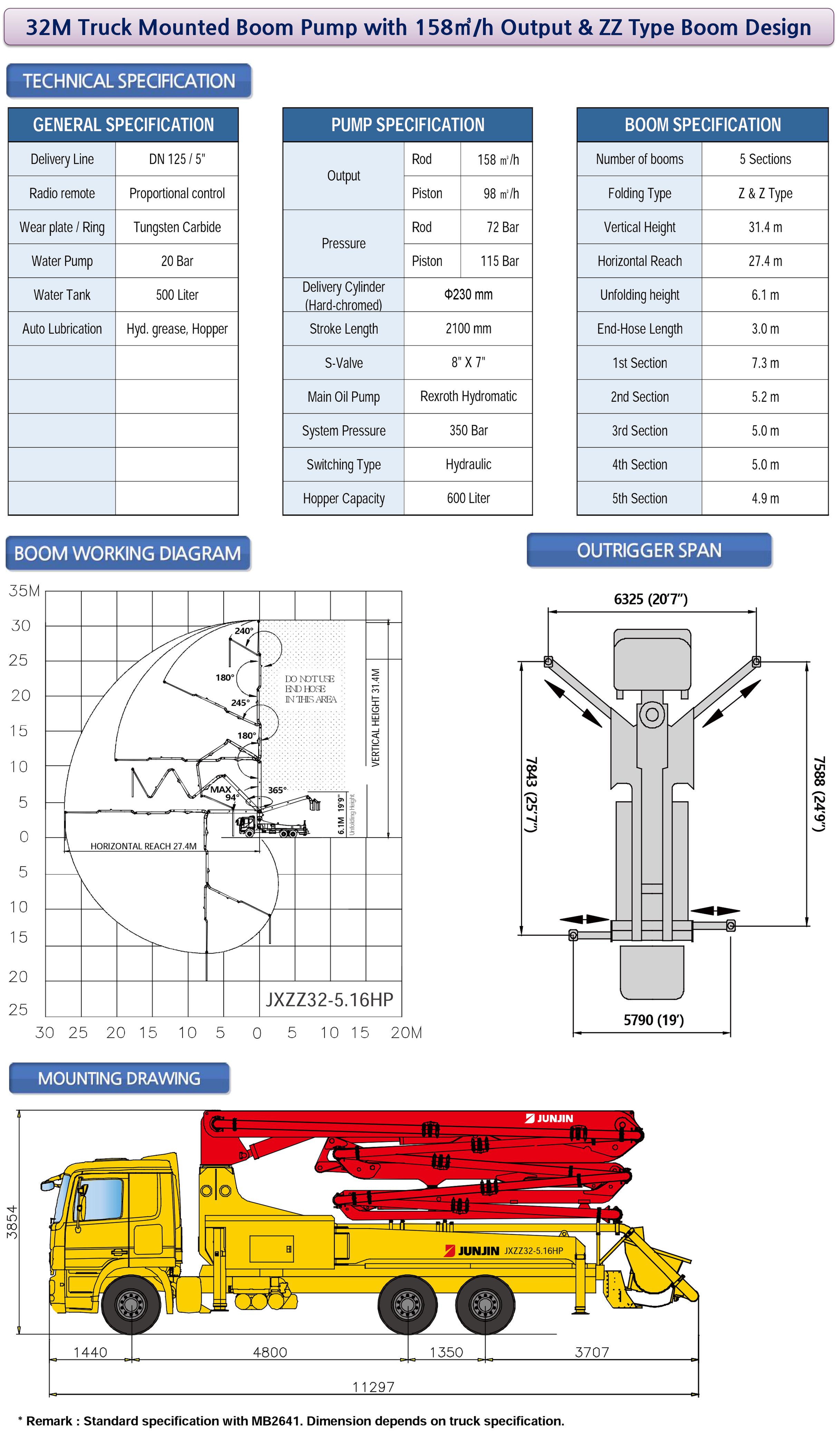

DIMENSIONS & DIAGRAM
