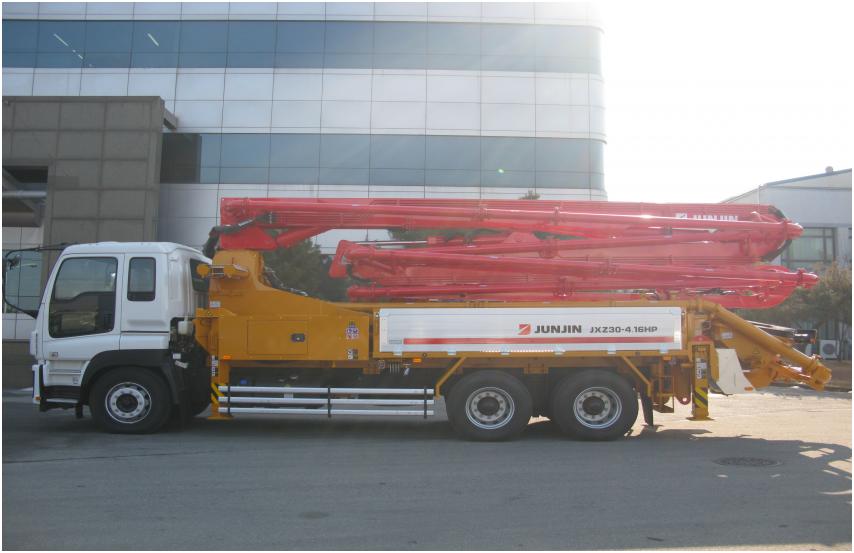

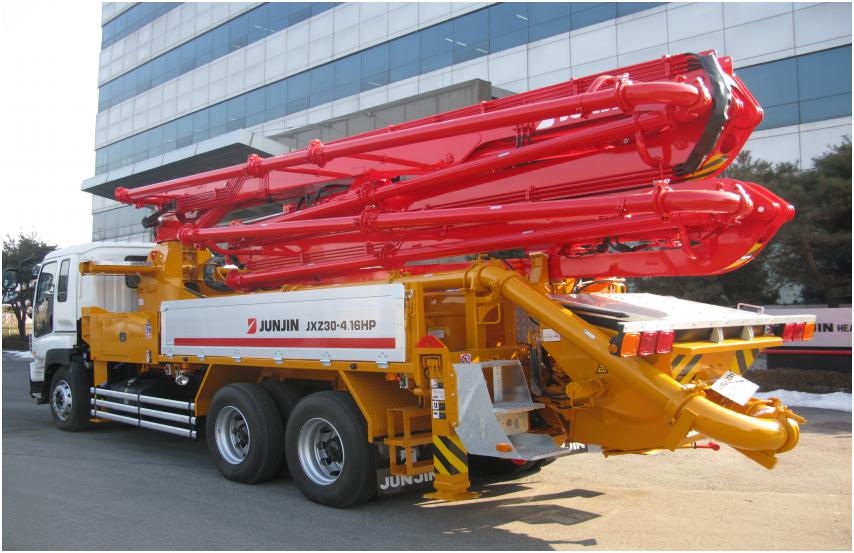

建設機械コンクリートポンプ車 39 ~ 30M

Suitable for the strict weight restrictions. Wherever!!

Delivery Line	DN 125 / 5	Radio remote	Proportional control
Wear plate / Ring	Tungsten Carbide	Water Pump	20 Bar
Water Tank	500 Liter	Auto Lubrication	Hyd. grease, Hopper
Output	Rod 158 ㎥/h / Piston 98 ㎥/h	Pressure	Rod 72 Bar / Piston 115 Bar
Delivery Cylinder (Hard-chromed)	Φ230 mm	Stroke Length	2100 mm
S - Valve	8 X 7	Main Oil Pump	Rexroth Hydromatic
System Pressure	350 Bar	Switching Type	Hydraulic
Hopper Capacity	600 Liter	Number of booms	4 Sections
Folding Type	Z TYPE	Vertical Height	29.5 m
Horizontal Reach	25.7 m	Unfolding height	6.85 m
End-Hose Length	3.0 m	1st Section	7.5 m
2nd Section	5.9 m	3rd Section	6.1 m
4th Section	6.2 m
