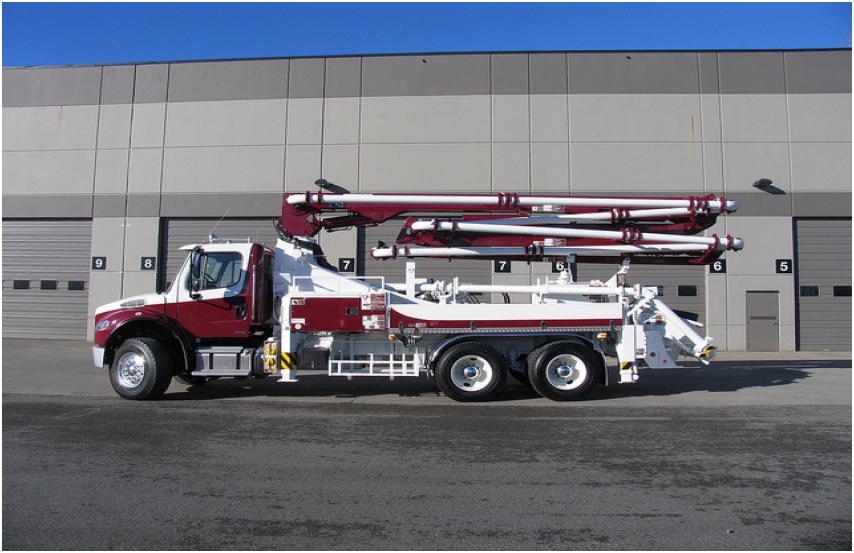

建設機械コンクリートポンプ車 29 ~ 18M

Lightweight and extreme versatility!
You will consistently find more and more ways to use this on challenging jobsites.

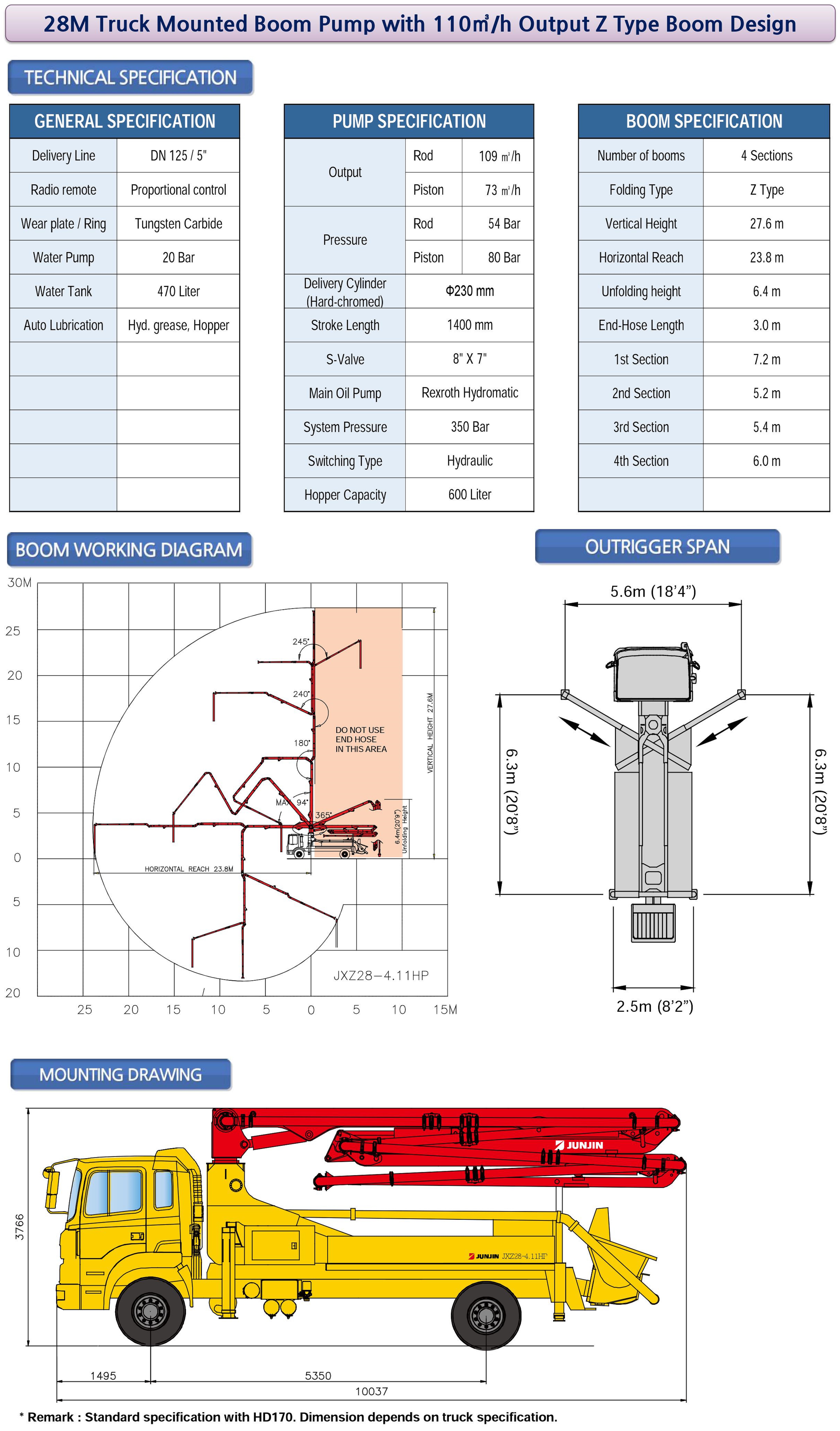

Delivery Line	DN 125 / 5	Radio remote	Proportional control
Wear plate / Ring	Tungsten Carbide	Water Pump	20 Bar
Water Tank	470 Liter	Auto Lubrication	Hyd. grease, Hopper
Output	Rod 109 ㎥/h / Piston 73 ㎥/h	Pressure	Rod 54 Bar / Piston 80 Bar
Delivery Cylinder (Hard-chromed)	Φ230 mm	Stroke Length	1400 mm
S - Valve	8 X 7	Main Oil Pump	Rexroth Hydromatic
System Pressure	350 Bar	Switching Type	Hydraulic
Hopper Capacity	600 Liter	Number of booms	4 Sections
Folding Type	Z TYPE	Vertical Height	27.6 m
Horizontal Reach	23.8 m	Unfolding height	6.4 m
End-Hose Length	3.0 m	1st Section	7.2 m
2nd Section	5.2 m	3rd Section	5.4 m
4th Section	6.0 m
