建設機械コンクリートポンプ車 29 ~ 18M

Suitable for urban environments where working space is limited.

Delivery Line	DN 125 / 5	Radio remote	Proportional control
Wear plate / Ring	Tungsten Carbide	Water Pump	20 Bar
Water Tank	470 Liter	Auto Lubrication	Hyd. grease, Hopper
Output	Rod 109 ㎥/h / Piston 73 ㎥/h	Pressure	Rod 54 Bar / Piston 80 Bar
Delivery Cylinder (Hard-chromed)	Φ230 mm	Stroke Length	1400 mm
S-Valve	8 X 7	Main Oil Pump	Rexroth Hydromatic
System Pressure	350 Bar	Switching Type	Hydraulic
Hopper Capacity	600 Liter	Number of booms	4 Sections
Folding Type	ZZ TYPE	Vertical Height	24.3 m
Horizontal Reach	20.5 m	Unfolding height	5.1 m
End-Hose Length	3.0 m

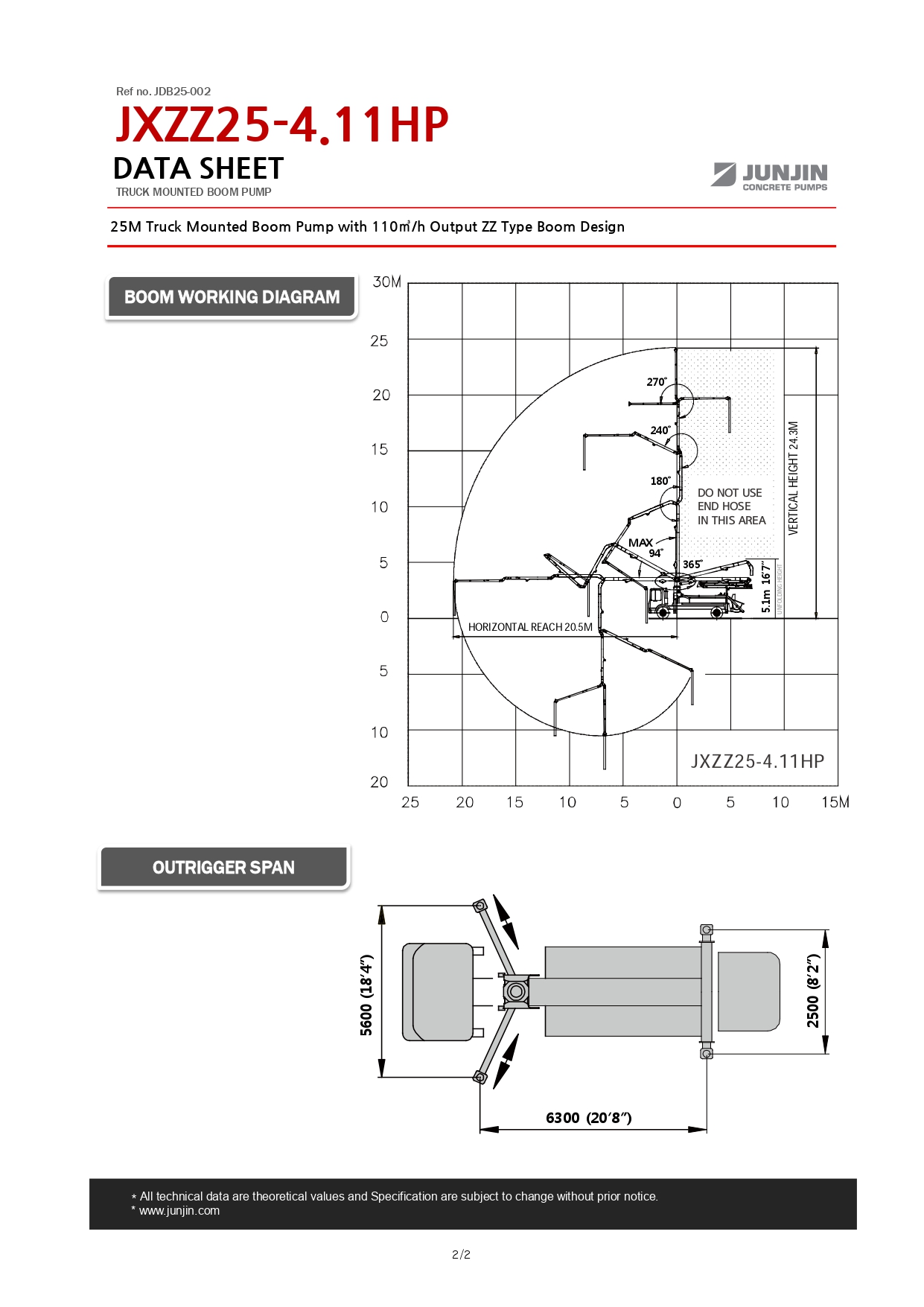

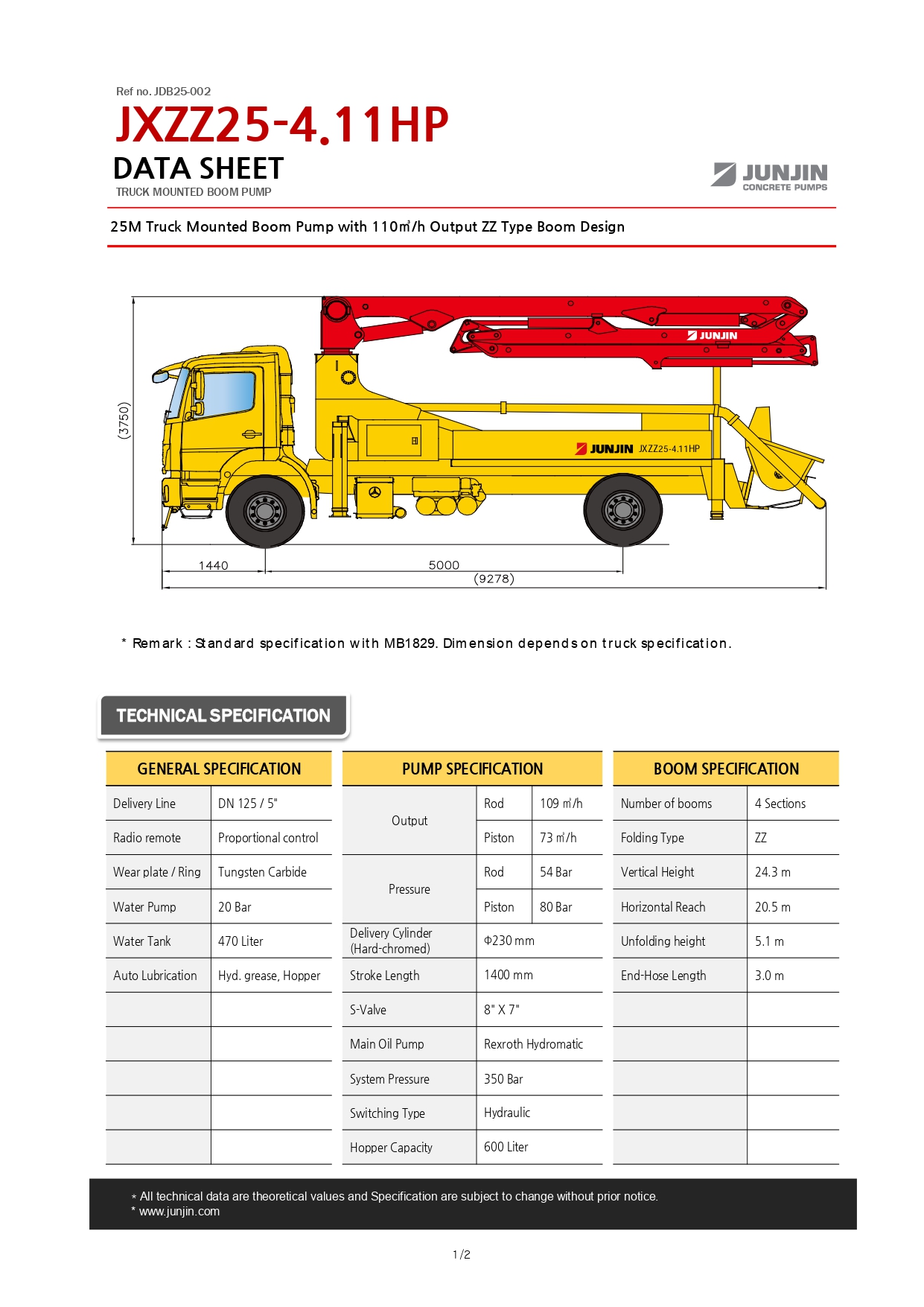

JXZZ25-4.11HP(BENZ 4X2) - 141211_page-0001.jpg
