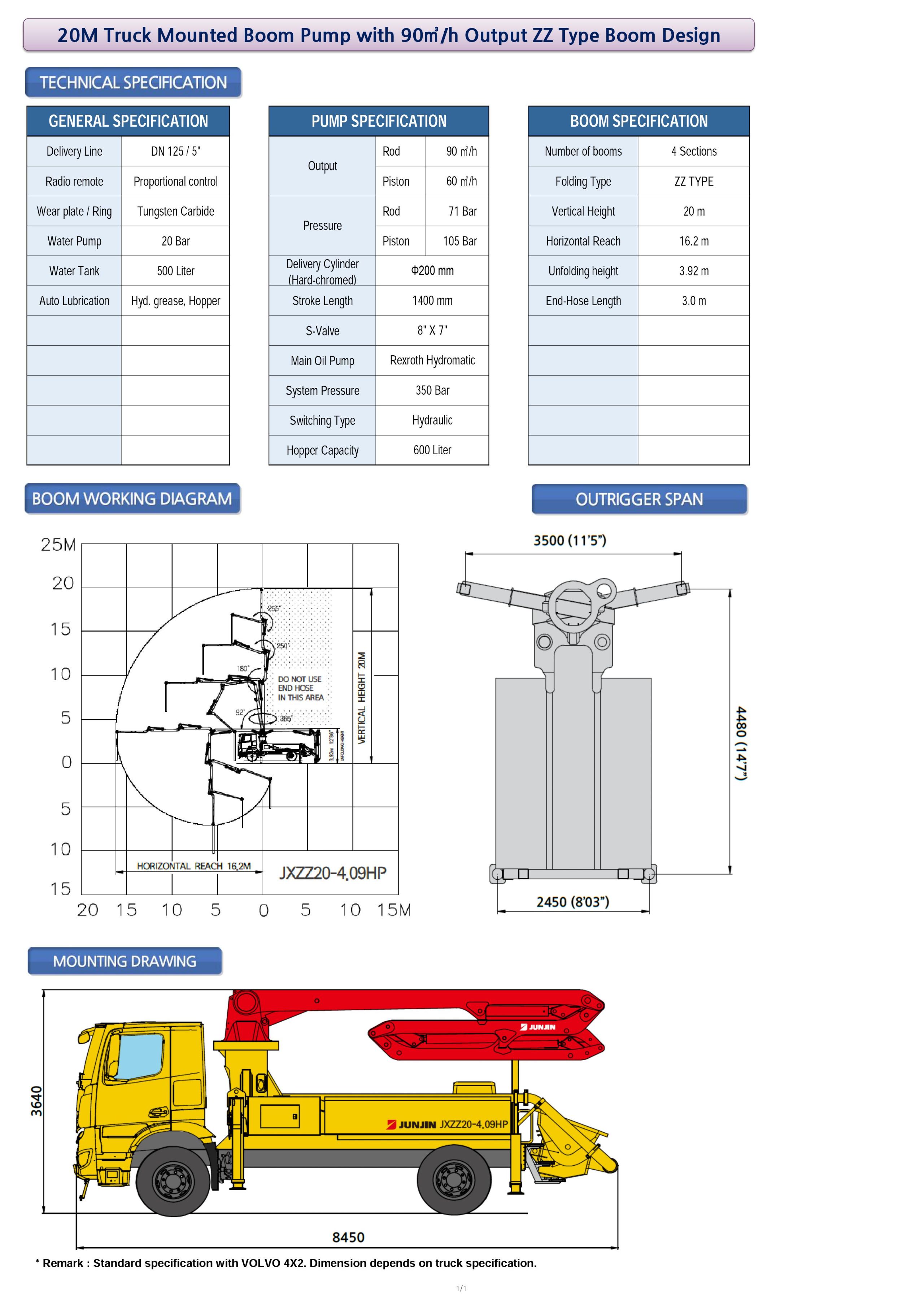

建設機械コンクリートポンプ車 29 ~ 18M

With all the standard equipment for a higher class pump.
Compact and versatile concrete pump!!

Delivery Line	DN 125 / 5	Radio remote	Proportional control
Wear plate / Ring	Tungsten Carbide	Water Pump	20 Bar
Water Pump	500 Liter	Auto Lubrication	Hyd. grease, Hopper
Output	Rod 90 ㎥/h / Piston 60 ㎥/h	Pressure	Rod 71 Bar / Piston 105 Bar
Delivery Cylinder (Hard-chromed)	Φ200 mm	Stroke Length	1400 mm
S-Valve	S2018	System Pressure	350 Bar
Switching Type	Hydraulic	Hopper Capacity	600 Liter
Number of booms	4 Sections	Folding Type	ZZ TYPE
Vertical Height	20 m	Horizontal Reach	16.4 m
Unfolding height	3.92 m	End-Hose Length	3.0 m
